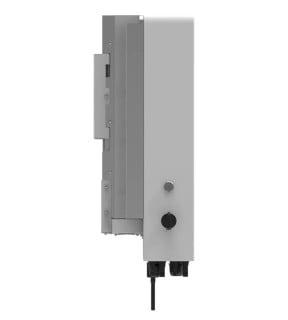

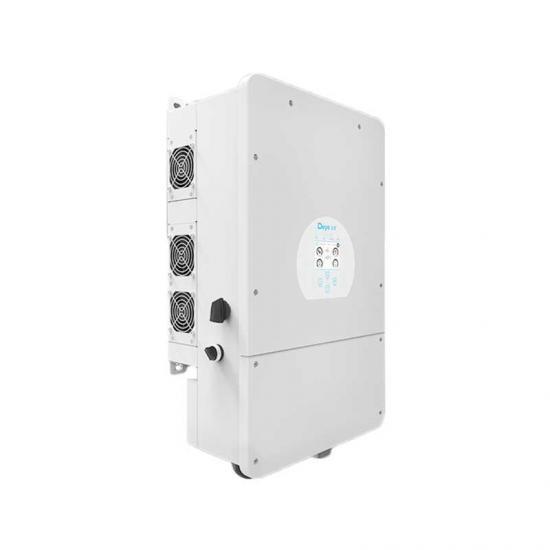

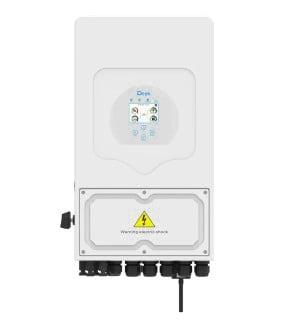

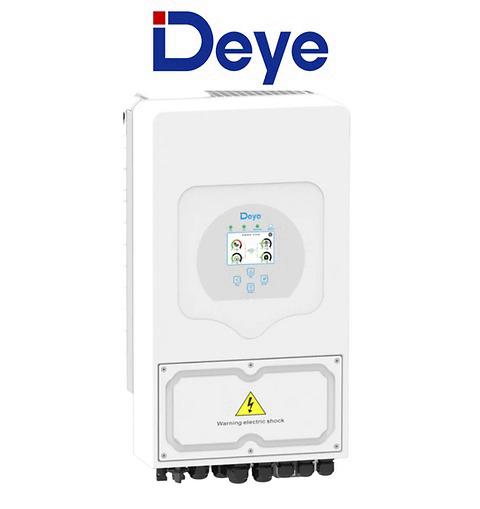

Solar Inverter Hybrid 3.6 kW

SOLAR INVERTER HYBRID | DEYE | 3.6 kW | Single-phase | Maximum Input Voltage 500 V | IP65 | Efficiency 97.6% | L 433mm W 330mm D 229mm | 17.00kg | Warranty 5 years

Solar Inverter Hybrid 3.6 kW

Ref: SUN-3K -SG04LP1-EU

In Stock

Strengths

Colorful touch LCD, IP65 protection degree

Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel

Support storing energy from diesel generator

Inverter Type
Inverter Hybrid
AC Connection
Single-phase

DIMENSION AND WEIGHT

Dimension
Length 433 mmWidth 330 mmDepth 229 mm
Weight
17 kg

COMMUNICATION & INTERFACE

Communication Interface
RS485WiFiCAN
System Language
English

GENERAL DATA

Model Designation
SUN-3K -SG04LP1-EU
Cooling Methode
Fan

ENVIRONMENT LIMIT

Degree of Protection
IP65
Operating Temperature Range
- 40 °C ~ 60 °C
Allowable Relative Humidity Range
0 % - 100 %
Typical Noise Emission
< 30 dB

Warranty

Standard Warranty
5 Years

INPUT (DC)

Maximum Recommended PV Array Power
3000 Wp
Maximum Input Voltage
500 V
Input Voltage Range
150 V - 425 V
Start Up Input Voltage
125 V
Maximum DC Short Circuit Current
17 A
Number of Strings per MPPT Input
1
Number of Strings per MPPT Input (input A / input B)
2 / 1

battery

Battery Voltage Range
40 V - 60 V
Compatible battery type
Lead acid/Lithium
Maximum Charge/discharge Current
70 A / 70 A

Inverter Output

Rated Output Power
3600 W
Peak Power
7200 VA
Nominal AC Grid Voltage
220V/230V
Output Frequency
50Hz/60Hz
Total Harmonic Distortion, THDi at Rated Power
< 3 %
AC Connection
Single-phase

Input (AC)

Maximum AC Power
7200 W
Maximum AC Apparent Power
7920 VA
Nominal Voltage
230V/400V
Total Harmonic Distortion, THDi at Rated Power
3 %

Eps Output

EFFICIENCY

Maximum Efficiency
97.6 %
Euro Efficiency
96.5 %
MPPT Efficiency
99 %

PROTECTION & MONITORING

Over Voltage Protection
Yes
Over Current Protection
Yes
Over Temperature Protection
Yes
RCD Protection
Yes
Leakage Current Protection
Yes
DC Reverse Polarity Protection
Yes
AC Short Circuit Current Protection
Yes
Anti-islanding Protection
Yes
Insulation Resistance Protection
No
DC Surge Protection
Yes
AC Surge Protection
Yes
Ground Fault Current Monitoring
Yes
Grid Monitoring
No
PV String Current Monitoring
Yes
DC Injection Monitoring
No
DC Isolation Impedance Monitoring
No
LVRT
Yes
Galvanically isolated
Yes
PID Prevention
No
DC Switch
Yes
AC Switch
Yes
Isolation Protection
Yes
Battery Reverse Connection Protection
Yes
Battery Start Protection
Yes
DC Fuse
Yes
AC Surge Category
II
DC Surge Category
II
