Solar Inverter On-grid 5 kW

Account

SOLAR INVERTER ON-GRID | CHISAGE | 5 kW | Three-phase | Maximum Input Voltage 1100 V | Transformerless | IP66 | Efficiency 98.6% | L 411mm W 401mm D 162mm | 15.00kg | Warranty 5 years

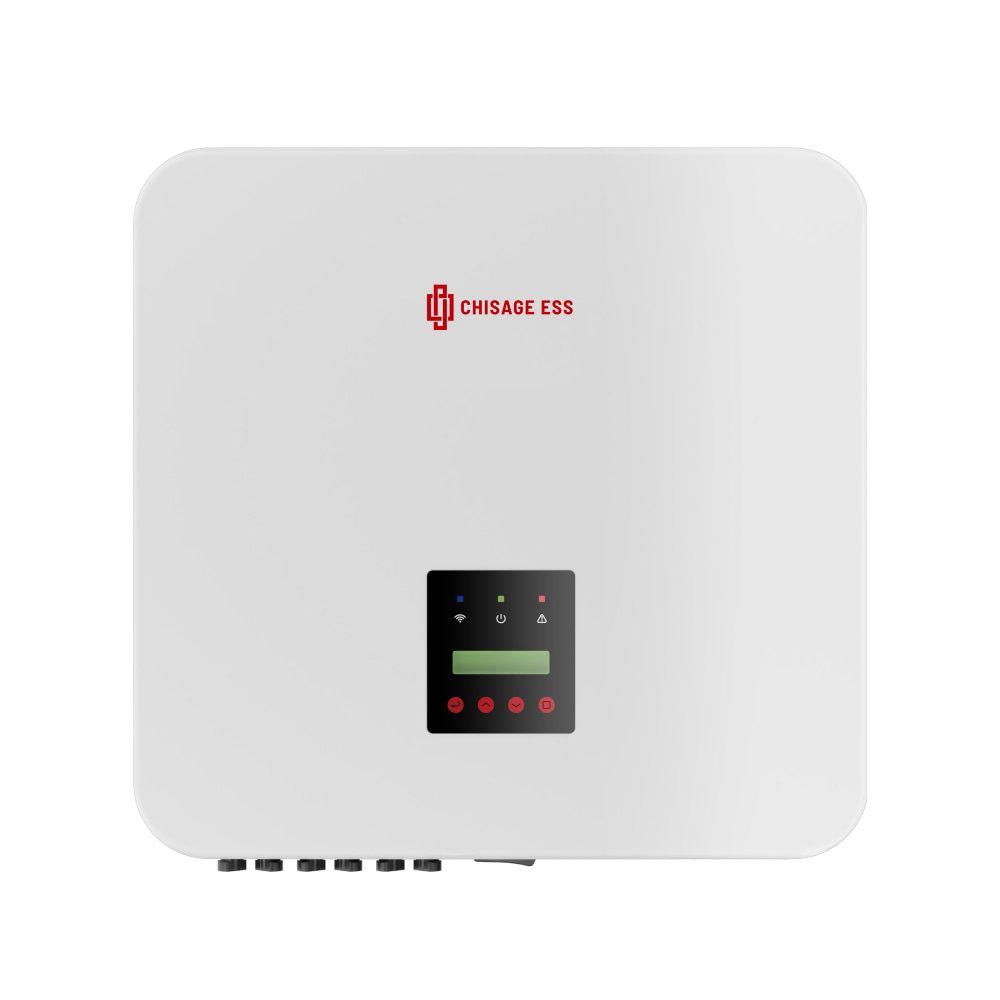

Solar Inverter On-grid 5 kW

Ref: CE-3P5KEG-Pro

In Stock

Inverter Type
Inverter On-grid
AC Connection
Three-phase

DIMENSION AND WEIGHT

Dimension
Length 411 mmWidth 401 mmDepth 162 mm
Weight
15 kg

COMMUNICATION & INTERFACE

Display Interface
WIRELESS
Communication Interface
RS485GPRSWiFi2.4G
System Language
English

GENERAL DATA

Model Designation
CE-3P5KEG-Pro
Topology
Transformerless
Cooling Methode
Natural Convection

ENVIRONMENT LIMIT

Degree of Protection
IP66
Operating Temperature Range
- 25 °C ~ 60 °C
Maximum Operation Attitude
3000 m
Allowable Relative Humidity Range
0 % - 100 %
Typical Noise Emission
< 20 dB

Warranty

Standard Warranty
5 Years

INPUT (DC)

Maximum Recommended PV Array Power
5000 Wp
Maximum Input Voltage
1100 V

OUTPUT (AC)

Rated Output Power
5000 W
Rated Grid AC Output Current
5000 A
Nominal AC Grid Voltage
220Vac
AC Grid Voltage Range
277 V - 460 V
Nominal Grid Frequency
50Hz/60Hz
Total Harmonic Distortion, THDi at Rated Power
< 3 %
DC Current Injection
< 0.5 %ln
Ajustable Displacement Power Factor
0.8 lead - 0.8 lag
AC Connection
Three-phase
Power Limit Export
No

EFFICIENCY

Maximum Efficiency
98.6 %
Euro Efficiency
98.3 %

PROTECTION & MONITORING

Over Voltage Protection
No
Over Current Protection
No
Over Temperature Protection
No
RCD Protection
No
Leakage Current Protection
No
DC Reverse Polarity Protection
No
AC Short Circuit Current Protection
No
Anti-islanding Protection
Yes
Insulation Resistance Protection
No
DC Surge Protection
No
AC Surge Protection
No
Input Side Disconnection Point
No
Ground Fault Current Monitoring
Yes
Grid Monitoring
No
PV String Current Monitoring
No
DC Injection Monitoring
No
DC Isolation Impedance Monitoring
No
LVRT
No
Galvanically isolated
No
PID Prevention
No
DC Switch
No
AC Switch
No
Surge Category
III

KEY INFORMATION

Brand
CHISAGE
Country
CHINA
Type
MANUFACTURER
