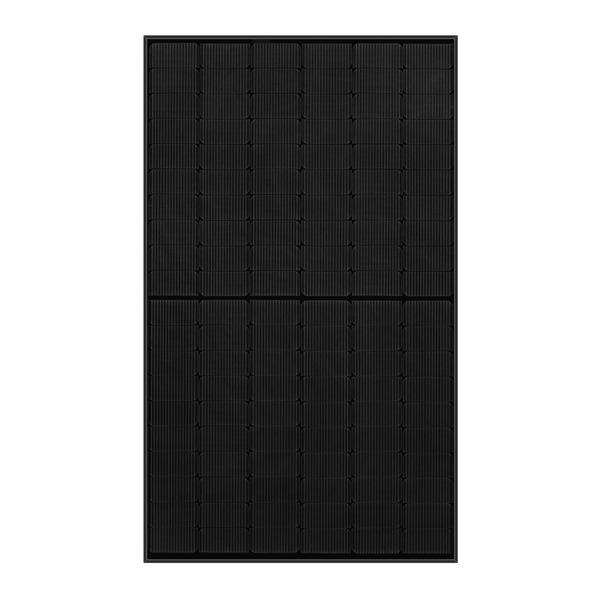

SOLAR PANEL 405 WATTS | FULL BLACK | JOLYWOOD | Bifacial Half-cut | Monocrystalline | 108 Cells PV Module | Power tolerance 0/+5W | L 1722mm W 1134mm D 30mm | 24.50kg | Material Warranty 25 years | Linear Power Warranty 30 years | Efficiency 20.7%
Solar Panel Bifacial Half-cut Monocrystalline 405 Wp
Ref: JW-HD108N-405WIn Stock
Strengths
- Outstanding visual appearance- Designed with aesthetics in mind, thinner wires that appear all black at a distance.
Better Temperature Coefficient - Higher power generation under working conditions, thanks to passivating contact cell technology.
Better Weak Illumination - Response Higher power output even under low-light environments like on cloudy or foggy days..
GENERAL DATA
- Monocrystalline
- Framed
- JW-HD108N-405W
- 108
- 91 x 182 mm
- 9 x 24

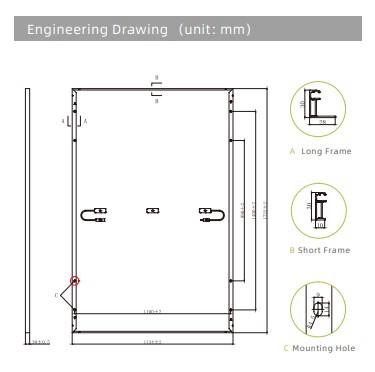

DIMENSION AND WEIGHT
- Length 1,722 mmWidth 1,134 mmDepth 30 mm
- 24.50 kg
- 1.95 m²
MECHANICAL CHARACTERISTICS
- Framed
- Anodised Aluminium
- IP68
- 3
Warranty
- 25 years
- 30 years
ELECTRICAL DATA AT STC
Standard Test Conditions
Irradiance 1000W/m2, Cell Temperature 25˚C & AM1.5
- 405 Wp
- 31.3 V
- 12.95 A
- 37.3 V
- 13.75 A
- 20.7 %
- 0/+5 W
ELECTRICAL DATA AT NOCT
Nominal Operating Cell Temperature:
Irradiance 800W/m2, Ambient Temperature 20˚C & Wind Speed 1m/s
- 307 W
- 29.4 V
- 10.44 A
- 35.7 V
- 11.09 A
TEMPERATURE COEFFICIENTS
- 42 ± 2˚C
- -0.3 %/˚C
- -0.25 %/˚C
- -0.045 %/˚C
MAXIMUM RATING
- IEC 1500 V
- 30 A
- -40 ˚C ~ +85 ˚C
KEY INFORMATION
- JOLYWOOD
- CHINA
- MANUFACTURER
- 2008
- >1000 people
- 410 Watts to 700 Watts
Production
- >10000 m²
- >10 Units
