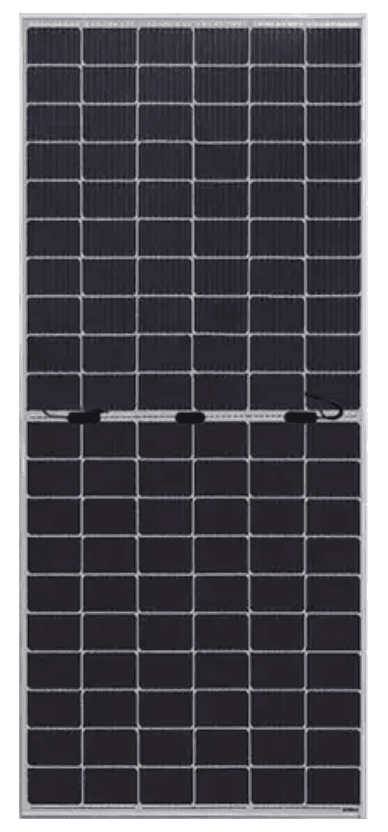

SOLAR PANEL 410 WATTS | Bifacial Half-cut | Monocrystalline | 108 Cells PV Module | Grade A | Power tolerance 0/+3W | L 1722mm W 1134mm D 30mm | 21.50kg | Material Warranty 12 years | Linear Power Warranty 30 years | Efficiency 21%
Solar Panel Bifacial Half-cut Monocrystalline 410 Wp
Ref: ODA410-27V-MHTIn Stock
GENERAL DATA
- Monocrystalline
- Framed
- ODA410-27V-MHT
- A
- 108
DIMENSION AND WEIGHT
- Length 1,722 mmWidth 1,134 mmDepth 30 mm
- 21.50 kg
- 1.95 m²
MECHANICAL CHARACTERISTICS
- Framed
- Anodised Aluminium
- EVA
- IP68
- 3
- Ø 4 mm² / 350 mm
- MC4
Warranty
- 12 years
- 30 years
- 1 years; 98 %30 years; 85 %
HIGHER LIFETIME POWER YIELD
- 2 %
- 2.4 %
- 0.4 %
ELECTRICAL DATA AT STC
Standard Test Conditions
Irradiance 1000W/m2, Cell Temperature 25˚C & AM1.5
- 410 Wp
- 31.46 V
- 13.04 A
- 37.45 V
- 13.85 A
- 21 %
- 0/+3 W
ELECTRICAL DATA AT NOCT
Nominal Operating Cell Temperature:
Irradiance 800W/m2, Ambient Temperature 20˚C & Wind Speed 1m/s
- 304.8 W
- 29.2 V
- 10.44 A
- 35.05 V
- 11.16 A
TEMPERATURE COEFFICIENTS
- 45 ± 2˚C
- -0.35 %/˚C
- -0.285 %/˚C
- -0.045 %/˚C
MAXIMUM RATING
- IEC 1500 V
- 25 A
- -40 ˚C ~ +85 ˚C
- 5400 Pa
- 2400 Pa
KEY INFORMATION
- CHINA
- MANUFACTURER
- 2009
- 501-1000 people
- 290 Watts to 460 Watts
