SOLAR PANEL 525 WATTS | GAUTAM | Bifacial Half-cut | Monocrystalline | Power tolerance 0/+5W | L 2280mm W 1134mm D 35mm | 35.00kg | Material Warranty 15 years | Linear Power Warranty 30 years | Efficiency 22.4%

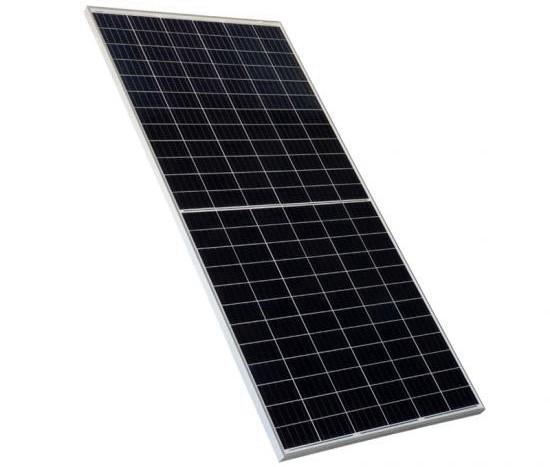

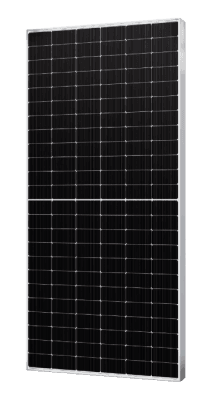

Solar Panel Bifacial Half-cut Monocrystalline 525 Wp
Ref: G2X-Bifacial-1682-HADIn Stock
Strengths
- Ideal for roof top and large installations
Resistant to extreme weather conditions
High transmission low iron tempered AR coated glass
GENERAL DATA
- Monocrystalline
- Framed
- G2X-Bifacial-1682-HAD
- 91 x 182 mm
- 6 x 24
- 10
DIMENSION AND WEIGHT
- Length 2,280 mmWidth 1,134 mmDepth 35 mm
- 35 kg
- 2.59 m²
MECHANICAL CHARACTERISTICS
- Framed
- Anodised Aluminium
- EVA
- IP65
ELECTRICAL DATA AT STC
Standard Test Conditions
Irradiance 1000W/m2, Cell Temperature 25˚C & AM1.5
- 525 Wp
- 41.35 V
- 12.7 A
- 48.91 V
- 13.6 A
- 22.4 %
- 0/+5 W
TEMPERATURE COEFFICIENTS
- 45 ± 2˚C
- -0.42 %/˚C
- -0.33 %/˚C
- -0.05 %/˚C
MAXIMUM RATING
- 25 A
- -40 ˚C ~ +85 ˚C
KEY INFORMATION
- GAUTAM
- INDIA
- MANUFACTURER
- 1998
- Millions $ 10-50
- 301-500 people
- 400 Watts to 585 Watts
Production
- 3001-5000 m²
- 4 Units
- 10,000 MegaWatts
FACTORY INSPECTION REPORTS SOLARDROP
Solardrop Laboratory
- Founded: 2020
- Services: Testing, Certification, Consulting, Training
- Revenue: 2 billion (2013)
- Total Employees: 200 (2020)
