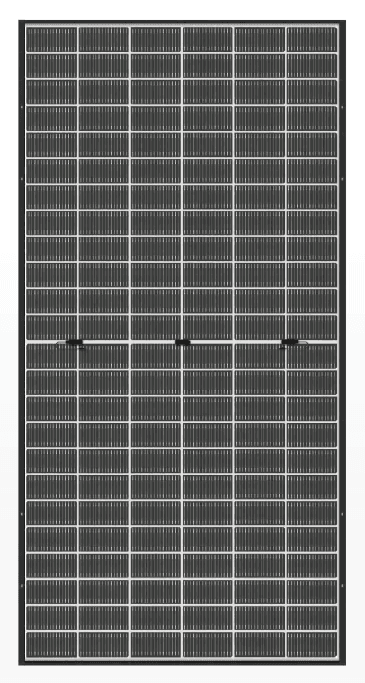

SOLAR PANEL 575 WATTS | FULL BLACK | HORAY SOLAR | Bifacial Half-cut | Monocrystalline | 144 Cells PV Module | Power tolerance 0/+5W | L 2279mm W 1134mm D 35mm | 31.50kg | Material Warranty 25 years | Linear Power Warranty 30 years | Efficiency 22.3%
Solar Panel Bifacial Half-cut Monocrystalline 575 Wp
Ref: HS575TC-MHO-DIn Stock
Strengths
- More uniform current collection capability, reducing the current heat loss of the internal cells.
Higher performance under low light environment.
N-type solar cell has no LID naturally which can increase power generation.
GENERAL DATA
- Monocrystalline
- Framed
- HS575TC-MHO-D
- 144
- 91 x 182 mm
- 6 x 24
DIMENSION AND WEIGHT
- Length 2,279 mmWidth 1,134 mmDepth 35 mm
- 31.50 kg
- 2.58 m²
MECHANICAL CHARACTERISTICS
- Framed
- Anodised Aluminium
- IP68
- Ø 4 mm² / 1,300 mm
- MC4
Warranty
- 25 years
- 30 years
- 1 years; 98 %30 years; 85 %
HIGHER LIFETIME POWER YIELD
- 2 %
- 2.4 %
- 0.4 %
ELECTRICAL DATA AT STC
Standard Test Conditions
Irradiance 1000W/m2, Cell Temperature 25˚C & AM1.5
- 575 Wp
- 44.93 V
- 12.8 A
- 51.9 V
- 13.65 A
- 22.3 %
- 0/+5 W
ELECTRICAL DATA AT NOCT
Nominal Operating Cell Temperature:
Irradiance 800W/m2, Ambient Temperature 20˚C & Wind Speed 1m/s
- 460 W
- 44.93 V
- 10.24 A
- 53.92 V
- 10.84 A
TEMPERATURE COEFFICIENTS
- 45 ± 2˚C
- -0.34 %/˚C
- -0.28 %/˚C
- -0.05 %/˚C
MAXIMUM RATING
- IEC 1500 V
- 25 A
- -40 ˚C ~ +85 ˚C
- 5400 Pa
- 2400 Pa
KEY INFORMATION
- HORAY SOLAR
- CHINA
- MANUFACTURER
- 2010
- Millions $ >100
- >1000 people
- 380 Watts to 690 Watts
Production
- 500 MegaWatts
