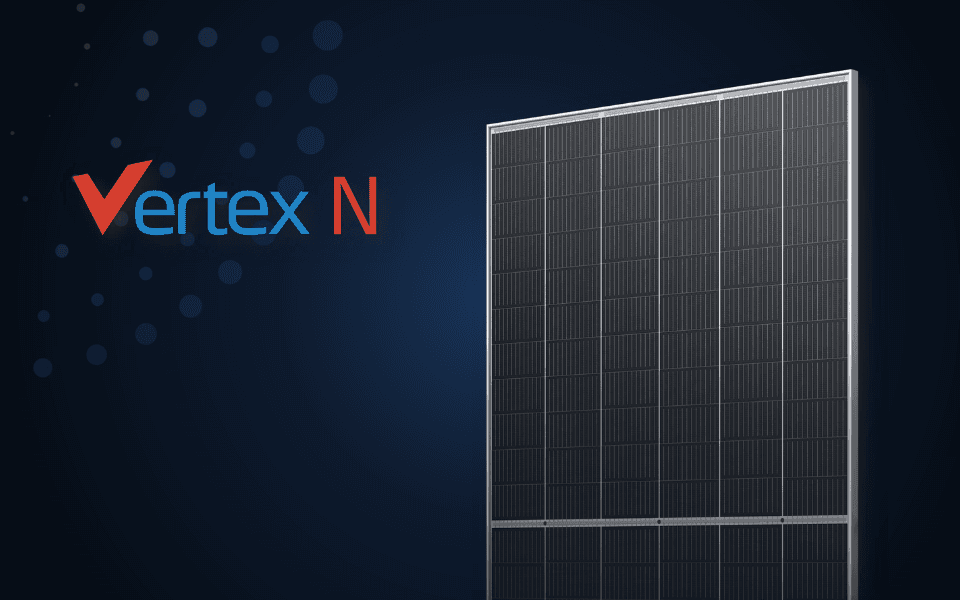

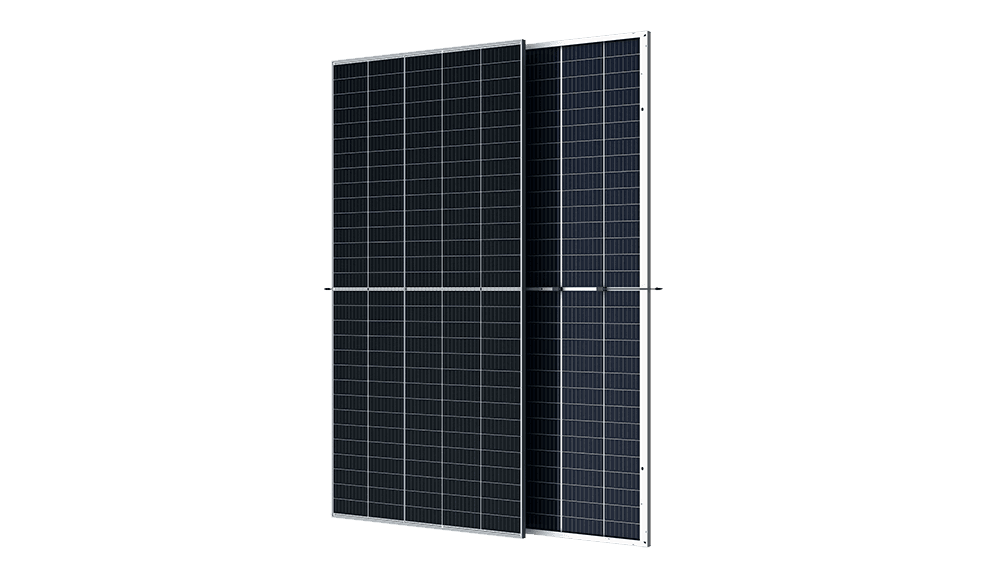

Solar Panel Bifacial Half-cut Monocrystalline 580 Wp

SOLAR PANEL 580 WATTS | TRINA SOLAR | Bifacial Half-cut | Monocrystalline | 132 Cells PV Module | Grade A | Power tolerance 0/+5W | L 2384mm W 1134mm D 30mm | 33.70kg | Material Warranty 12 years | Linear Power Warranty 30 years | Efficiency 21.5%

Solar Panel Bifacial Half-cut Monocrystalline 580 Wp

Ref: TSM-VERTEXNBD-580W

In Stock

Strengths

Lower LCOE (Levelized Cost Of Energy), reduced BOS (Balance of System) cost, shorter payback time • Lower first year and annual degradation • Designed for compatibility with existing mainstream system components

Minimized micro-cracks with innovative non-destructive cutting technology • Ensured PID resistance through cell process and module material control • Resistant to harsh environments such as salt, ammonia, sand, high temperature and high humidity areas

The unique design provides optimized energy production under inter-row shading conditions

GENERAL DATA

Solar Cells
Monocrystalline
Panel Type
Framed
Modal Designation
TSM-VERTEXNBD-580W
Grade
A
No. of Cells
132

DIMENSION AND WEIGHT

Dimension
Length 2,384 mmWidth 1,134 mmDepth 30 mm
Weight
33.70 kg
Panel Area
2.70 m²

MECHANICAL CHARACTERISTICS

Frame Type
Framed
Frame Material
Anodised Aluminium
Encapsulant
EVA
Junction Box
IP68
Output Cable
Ø 4 mm² / 350 mm
Connector
MC4

Warranty

Material Warranty
12 years
Linear Power Warranty
30 years
Power Output
1 years; 98 %30 years; 87 %

HIGHER LIFETIME POWER YIELD

First Year Degradation
1 %
Second Year Degradation
0.6 %
Linear Degradation per Year
0.4 %

ELECTRICAL DATA AT STC

Standard Test Conditions

Irradiance 1000W/m2, Cell Temperature 25˚C & AM1.5

Maximum Power Output (Pmax)
580 Wp
Maximum Power Voltage (Vmp)
39.2 V
Maximum Power Current (Imp)
14.79 A
Open Circuit Voltage (Voc)
47.2 V
Short Circuit Current (Isc)
15.65 A
Module Efficiency
21.5 %
Power Tolerance
0/+5 W

ELECTRICAL DATA AT NOCT

Nominal Operating Cell Temperature:

Irradiance 800W/m2, Ambient Temperature 20˚C & Wind Speed 1m/s

Maximum Power Output (Pmax)
442 W
Maximum Power Voltage (Vmp)
36.8 V
Maximum Power Current (Imp)
12 A
Open Circuit Voltage (Voc)
44.7 V
Short Circuit Current (Isc)
12.61 A

TEMPERATURE COEFFICIENTS

Nominal Operating Cell Temperature:
43 ± 2˚C
Temperature Coefficient of Pmax
-0.3 %/˚C
Temperature Coefficient of Voc
-0.24 %/˚C
Temperature Coefficient of Isc
-0.04 %/˚C

MAXIMUM RATING

Maximum System Voltage
IEC 1500 VUL 1500 V
Maximum Series Fuse
35 A
Operating Temperature Range
-40 ˚C ~ +85 ˚C

KEY INFORMATION

Brand
TRINA SOLAR
Country
CHINA
Type
MANUFACTURER
Creation
1997
Year Income
Millions $ >100
Employees
>1000 people
Power Range
390 Watts to 700 Watts

Production

Factory Size
>10000 m²
Production line
8 Units
Capacity per Year
170,000 MegaWatts

FACTORY INSPECTION REPORTS SOLARDROP

Solardrop Laboratory

Founded: 2020
Services: Testing, Certification, Consulting, Training
Revenue: 2 billion (2013)
Total Employees: 200 (2020)

FROM A SINGLE PALLET OF 30 PANELS, DIRECT SUPPLIER! FIRST SOLAR DROPSHIPPER IN THE WORLD
