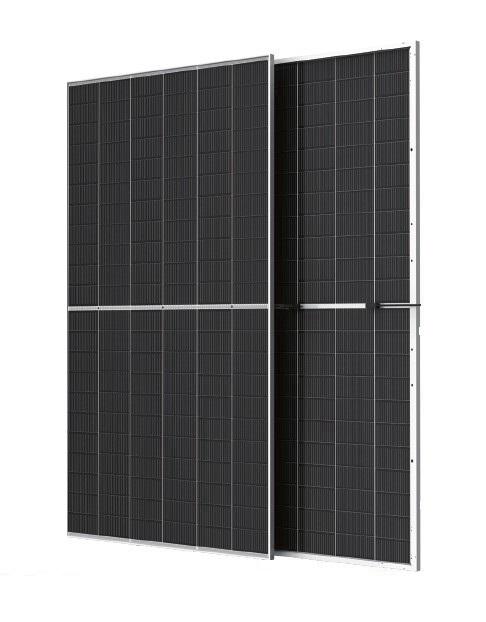

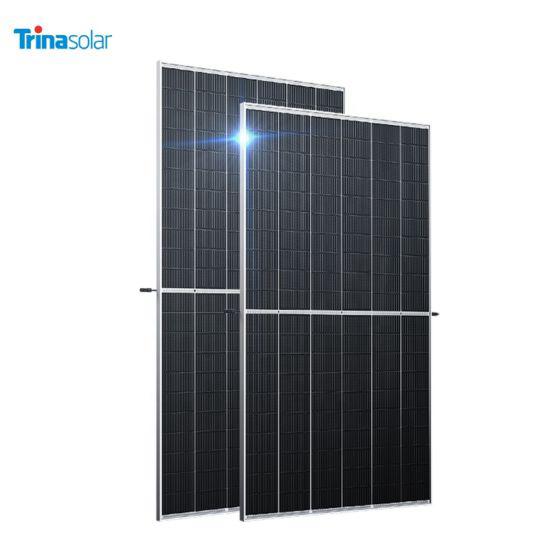

SOLAR PANEL 600 WATTS | TRINA SOLAR | Bifacial Half-cut | Monocrystalline | 132 Cells PV Module | Power tolerance 0/+5W | L 2384mm W 1134mm D 30mm | 33.70kg | Material Warranty 12 years | Linear Power Warranty 30 years | Efficiency 22.2%
Solar Panel Bifacial Half-cut Monocrystalline 600 Wp
Ref: TSM-VERTEX-BD600WIn Stock
Strengths
- Lower LCOE (Levelized Cost Of Energy), reduced BOS (Balance of System) cost, shorter payback time
Minimized micro-cracks with innovative non-destructive cutting technology
Excellent IAM (Incident Angle Modifier) and low irradiation performance, validated by 3rd party certifications
GENERAL DATA
- Monocrystalline
- Framed
- TSM-VERTEX-BD600W
- 132
DIMENSION AND WEIGHT
- Length 2,384 mmWidth 1,134 mmDepth 30 mm
- 33.70 kg
- 2.70 m²
MECHANICAL CHARACTERISTICS
- Framed
- Anodised Aluminium
- IP68
- Ø 4 mm² / 350 mm
- MC4
Warranty
- 12 years
- 30 years
- 12 years; 92 %30 years; 87 %
HIGHER LIFETIME POWER YIELD
- 1 %
- 0.4 %
ELECTRICAL DATA AT STC
Standard Test Conditions
Irradiance 1000W/m2, Cell Temperature 25˚C & AM1.5
- 600 Wp
- 40.3 V
- 14.94 A
- 48.4 V
- 15.8 A
- 22.2 %
- 0/+5 W
ELECTRICAL DATA AT NOCT
Nominal Operating Cell Temperature:
Irradiance 800W/m2, Ambient Temperature 20˚C & Wind Speed 1m/s
- 458 W
- 37.8 V
- 12.12 A
- 45.9 V
- 12.73 A
TEMPERATURE COEFFICIENTS
- 43 ± 2˚C
- -0.3 %/˚C
- -0.24 %/˚C
- -0.04 %/˚C
MAXIMUM RATING
- IEC 1500 VUL 1500 V
- 35 A
- -40 ˚C ~ +85 ˚C
- 5400 Pa
- 2400 Pa
KEY INFORMATION
- TRINA SOLAR
- CHINA
- MANUFACTURER
- 1997
- Millions $ >100
- >1000 people
- 390 Watts to 700 Watts
Production
- >10000 m²
- 8 Units
- 170,000 MegaWatts
