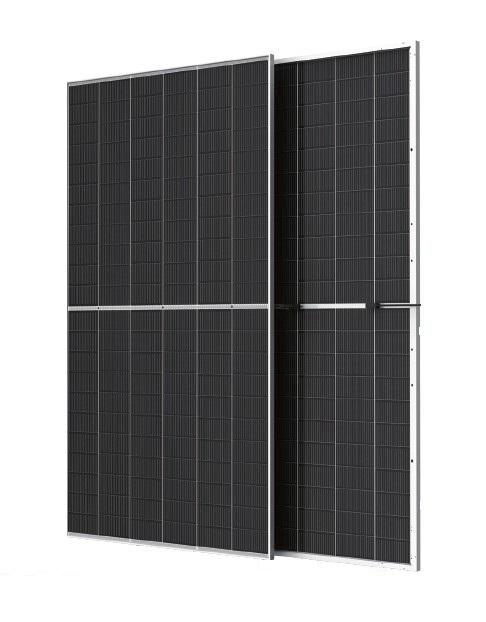

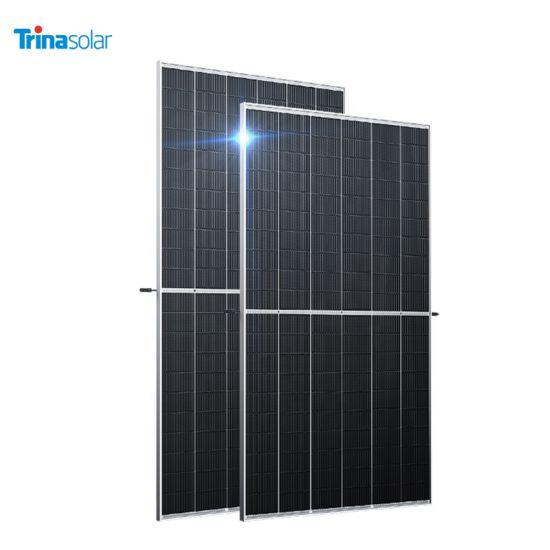

SOLAR PANEL 660 WATTS | TRINA SOLAR | Bifacial Half-cut | Monocrystalline | 132 Cells PV Module | Power tolerance 0/+5W | L 2384mm W 1303mm D 33mm | 38.30kg | Material Warranty 12 years | Linear Power Warranty 30 years | Efficiency 21.4%
Solar Panel Bifacial Half-cut Monocrystalline 660 Wp
Ref: TSM-VERTEX-660WIn Stock
Strengths
- Lower LCOE (Levelized Cost of Energy), reduced BOS (Balance of System) cost, shorter payback time
Up to 21.5% module efficiency with high density interconnect technology
Minimized micro-cracks with innovative non-destructive cutting technology
GENERAL DATA
- Monocrystalline
- Framed
- TSM-VERTEX-660W
- 132
DIMENSION AND WEIGHT
- Length 2,384 mmWidth 1,303 mmDepth 33 mm
- 38.30 kg
- 3.11 m²
MECHANICAL CHARACTERISTICS
- Framed
- Anodised Aluminium
- POE/EVA
- IP68
- MC4EV02/TS4*
Warranty
- 12 years
- 30 years
HIGHER LIFETIME POWER YIELD
- 2 %
- 0.5 %
ELECTRICAL DATA AT STC
Standard Test Conditions
Irradiance 1000W/m2, Cell Temperature 25˚C & AM1.5
- 660 Wp
- 38.3 V
- 17.35 A
- 46.1 V
- 18.45 A
- 21.4 %
- 0/+5 W
ELECTRICAL DATA AT NOCT
Nominal Operating Cell Temperature:
Irradiance 800W/m2, Ambient Temperature 20˚C & Wind Speed 1m/s
- 499 W
- 35.4 V
- 14.1 A
- 43.2 V
- 14.87 A
TEMPERATURE COEFFICIENTS
- 43 ± 2˚C
- -0.34 %/˚C
- -0.25 %/˚C
- -0.04 %/˚C
MAXIMUM RATING
- IEC 1500 V
- 35 A
- -40 ˚C ~ +85 ˚C
- 5400 Pa
- 2400 Pa
KEY INFORMATION
- TRINA SOLAR
- CHINA
- MANUFACTURER
- 1997
- Millions $ >100
- >1000 people
- 390 Watts to 700 Watts
Production
- >10000 m²
- 8 Units
- 170,000 MegaWatts
