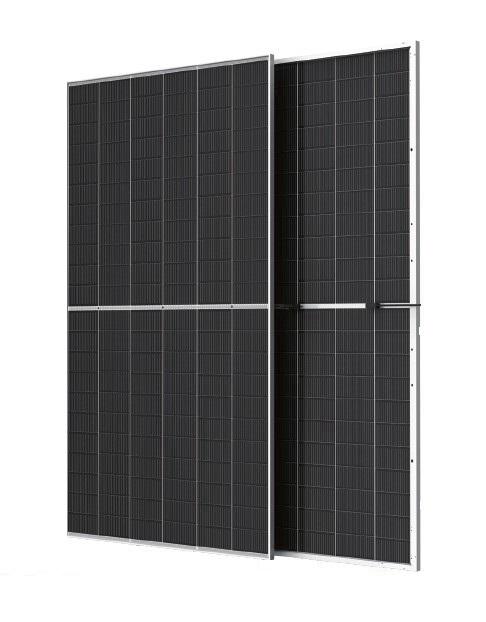

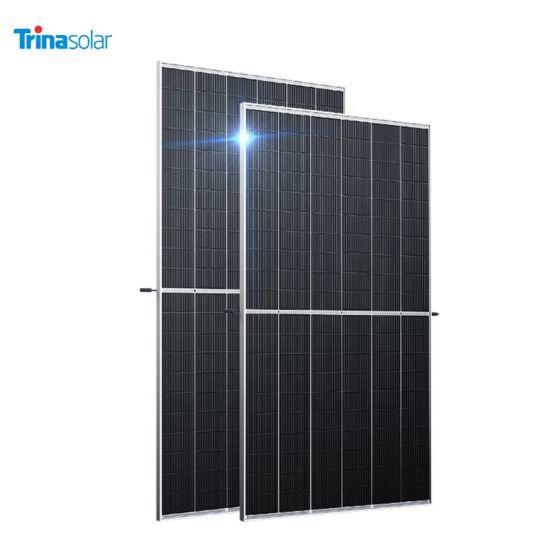

SOLAR PANEL 695 WATTS | TRINA SOLAR | Bifacial Half-cut | Monocrystalline | 132 Cells PV Module | Power tolerance 0/+5W | L 2384mm W 1303mm D 33mm | 38.30kg | Material Warranty 12 years | Linear Power Warranty 30 years | Efficiency 22.4%
Solar Panel Bifacial Half-cut Monocrystalline 695 Wp
Ref: TSM-VERTEXN-695WIn Stock
Strengths
- Lower LCOE (levelized cost of energy), reduced BOS (balance of system) cost, shorter payback time.
Resistant to harsh environments such as salt ammonia, sand, high temperature and high humidity areas.
Excellent product bifaciality and low irradiation performance, validated by 3rd party.
GENERAL DATA
- Monocrystalline
- Framed
- TSM-VERTEXN-695W
- 132
DIMENSION AND WEIGHT
- Length 2,384 mmWidth 1,303 mmDepth 33 mm
- 38.30 kg
- 3.11 m²
MECHANICAL CHARACTERISTICS
- Framed
- Anodised Aluminium
- POE/EVA
- IP68
- MC4EV02/TS4PLUS/TS4*
Warranty
- 12 years
- 30 years
HIGHER LIFETIME POWER YIELD
- 1 %
- 0.4 %
ELECTRICAL DATA AT STC
Standard Test Conditions
Irradiance 1000W/m2, Cell Temperature 25˚C & AM1.5
- 695 Wp
- 40.5 V
- 17.25 A
- 48.3 V
- 18.28 A
- 22.4 %
- 0/+5 W
ELECTRICAL DATA AT NOCT
Nominal Operating Cell Temperature:
Irradiance 800W/m2, Ambient Temperature 20˚C & Wind Speed 1m/s
- 530 W
- 37.8 V
- 14.02 A
- 45.8 V
- 14.73 A
TEMPERATURE COEFFICIENTS
- 43 ± 2˚C
- -0.3 %/˚C
- -0.24 %/˚C
- -0.04 %/˚C
MAXIMUM RATING
- IEC 1500 V
- 35 A
- -40 ˚C ~ +85 ˚C
- 5400 Pa
- 2400 Pa
KEY INFORMATION
- TRINA SOLAR
- CHINA
- MANUFACTURER
- 1997
- Millions $ >100
- >1000 people
- 390 Watts to 700 Watts
Production
- >10000 m²
- 8 Units
- 170,000 MegaWatts
