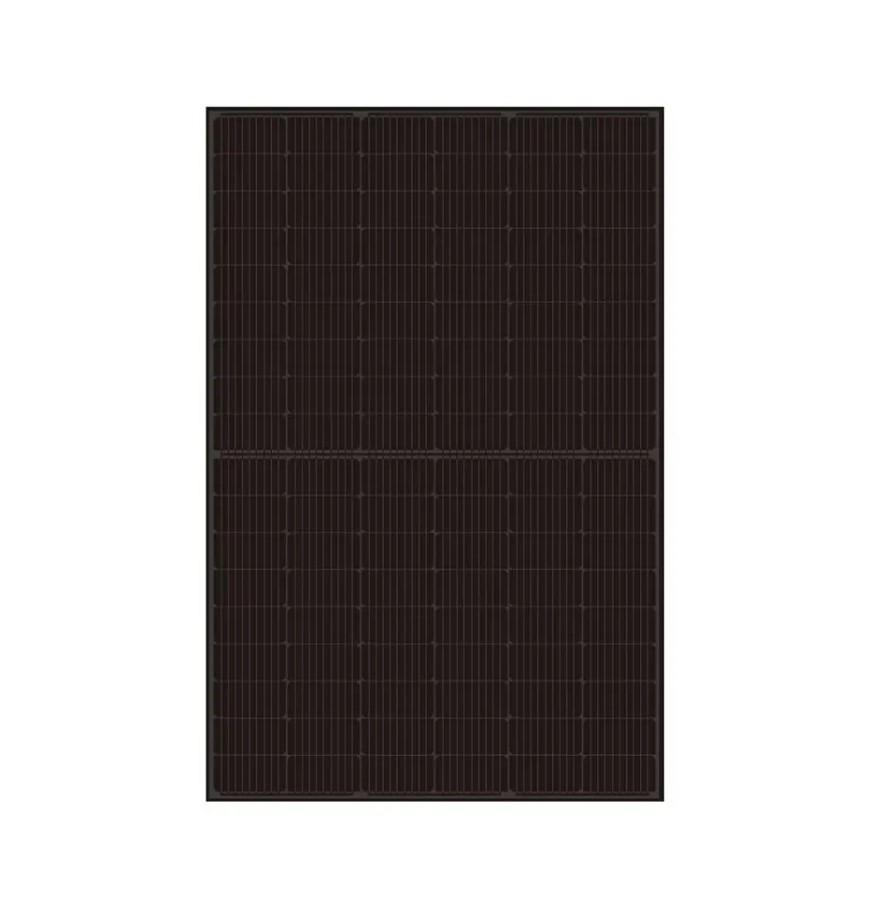

SOLAR PANEL 425 WATTS | FULL BLACK | JOLYWOOD | Bifacial Half-cut | N-Type TOPCon | 108 Cells PV Module | Power tolerance 0/+5W | L 1722mm W 1134mm D 30mm | 24.50kg | Material Warranty 25 years | Linear Power Warranty 30 years | Efficiency 21.8%
Solar Panel Bifacial Half-cut N-Type TOPCon 425 Wp
Ref: JW-HD108N-425WIn Stock
Strengths
- Better Temperature Coefficient Higher power generation under working conditions, thanks to passivating contact cell technology
Outstanding visual appearance Designed with aesthetics in mind,thinner wires that appear all black at a distance
ZERO LID (Light Induced Degradation) N-type solar cell has no LID naturally which can increase power generation
GENERAL DATA
- N-Type TOPCon
- Framed
- JW-HD108N-425W
- 108
- 91 x 182 mm
- 9 x 24
DIMENSION AND WEIGHT
- Length 1,722 mmWidth 1,134 mmDepth 30 mm
- 24.50 kg
- 1.95 m²
MECHANICAL CHARACTERISTICS
- Framed
- Anodised Aluminium
- IP68
- 3
Warranty
- 25 years
- 30 years
ELECTRICAL DATA AT STC
Standard Test Conditions
Irradiance 1000W/m2, Cell Temperature 25˚C & AM1.5
- 425 Wp
- 32.1 V
- 13.24 A
- 38.1 V
- 14.05 A
- 21.8 %
- 0/+5 W
ELECTRICAL DATA AT NOCT
Nominal Operating Cell Temperature:
Irradiance 800W/m2, Ambient Temperature 20˚C & Wind Speed 1m/s
- 322 W
- 30.2 V
- 10.67 A
- 36.4 V
- 11.33 A
TEMPERATURE COEFFICIENTS
- 42 ± 2˚C
- -0.3 %/˚C
- -0.25 %/˚C
- -0.045 %/˚C
MAXIMUM RATING
- IEC 1500 V
- 30 A
- -40 ˚C ~ +85 ˚C
KEY INFORMATION
- JOLYWOOD
- CHINA
- MANUFACTURER
- 2008
- >1000 people
- 410 Watts to 700 Watts
Production
- >10000 m²
- >10 Units
