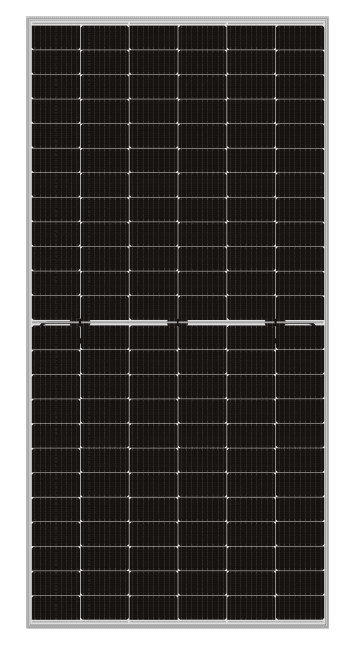

SOLAR PANEL 460 WATTS | JOLYWOOD | Bifacial Half-cut | N-Type TOPCon | 144 Cells PV Module | Grade A | Power tolerance 0/+5W | L 2095mm W 1039mm D 30mm | 28.00kg | Material Warranty 15 years | Linear Power Warranty 30 years | Efficiency 21.1%
Solar Panel Bifacial Half-cut N-Type TOPCon 460 Wp
Ref: JW-HD144N-460WIn Stock
Strengths
- Better Weak Illumination- Response Higher power output even under low-light environments like on cloudy or foggy days
Better Temperature Coefficient - Higher power generation under working conditions, thanks to passivating contact cell technology
Wider Applicability - More application scenes like BIPV, vertical installation, snowfield, high-humid, windy and dusty area
GENERAL DATA
- N-Type TOPCon
- Framed
- JW-HD144N-460W
- A
- 144
- 83 x 166 mm
- 6 x 24
DIMENSION AND WEIGHT
- Length 2,095 mmWidth 1,039 mmDepth 30 mm
- 28 kg
- 2.18 m²
MECHANICAL CHARACTERISTICS
- Framed
- Anodised Aluminium
- IP68
- 3
- Ø 4 mm² / 300 mm
Warranty
- 15 years
- 30 years
ELECTRICAL DATA AT STC
Standard Test Conditions
Irradiance 1000W/m2, Cell Temperature 25˚C & AM1.5
- 460 Wp
- 42 V
- 10.96 A
- 50.4 V
- 11.56 A
- 21.1 %
- 0/+5 W
ELECTRICAL DATA AT NOCT
Nominal Operating Cell Temperature:
Irradiance 800W/m2, Ambient Temperature 20˚C & Wind Speed 1m/s
- 349 W
- 39.5 V
- 8.84 A
- 48.2 V
- 9.32 A
TEMPERATURE COEFFICIENTS
- 42 ± 2˚C
- -0.3 %/˚C
- -0.25 %/˚C
- -0.045 %/˚C
MAXIMUM RATING
- IEC 1500 V
- 25 A
- -40 ˚C ~ +85 ˚C
KEY INFORMATION
- JOLYWOOD
- CHINA
- MANUFACTURER
- 2008
- >1000 people
- 410 Watts to 700 Watts
Production
- >10000 m²
- >10 Units
