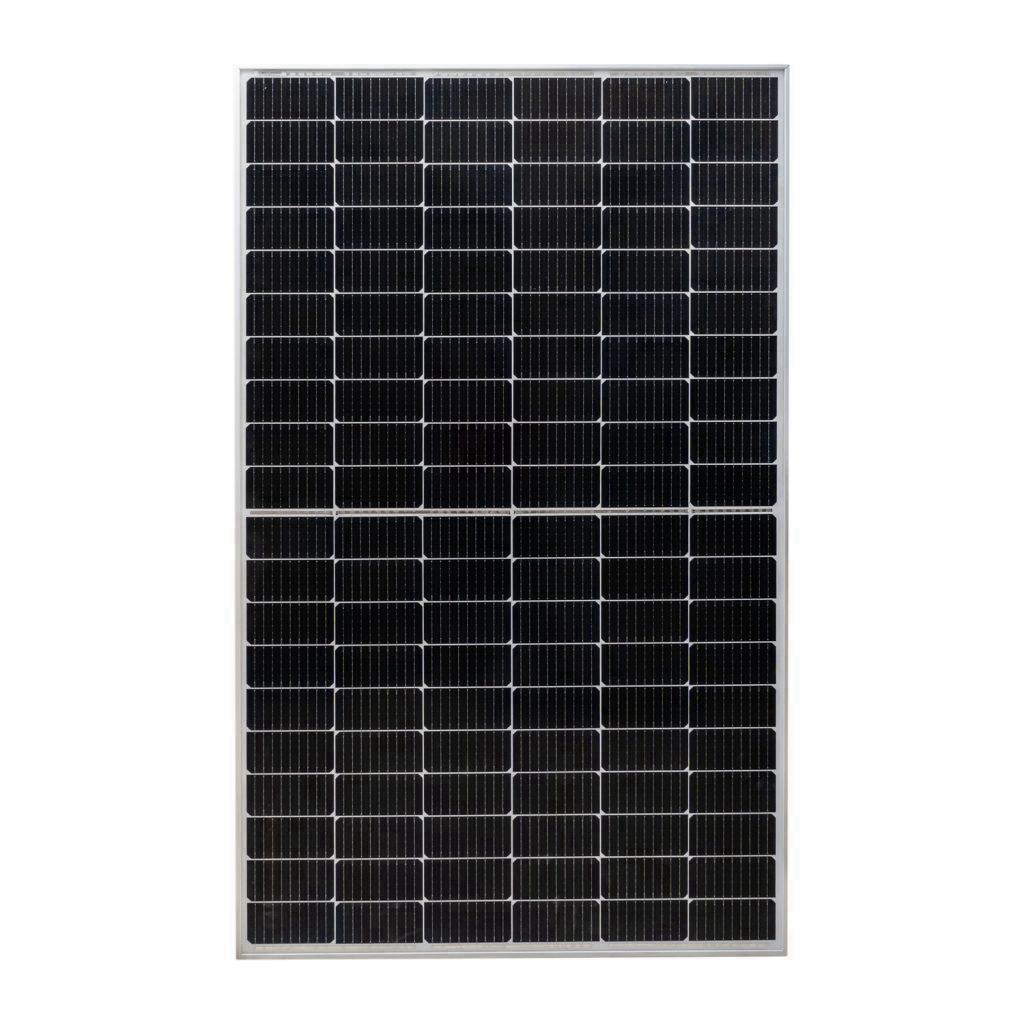

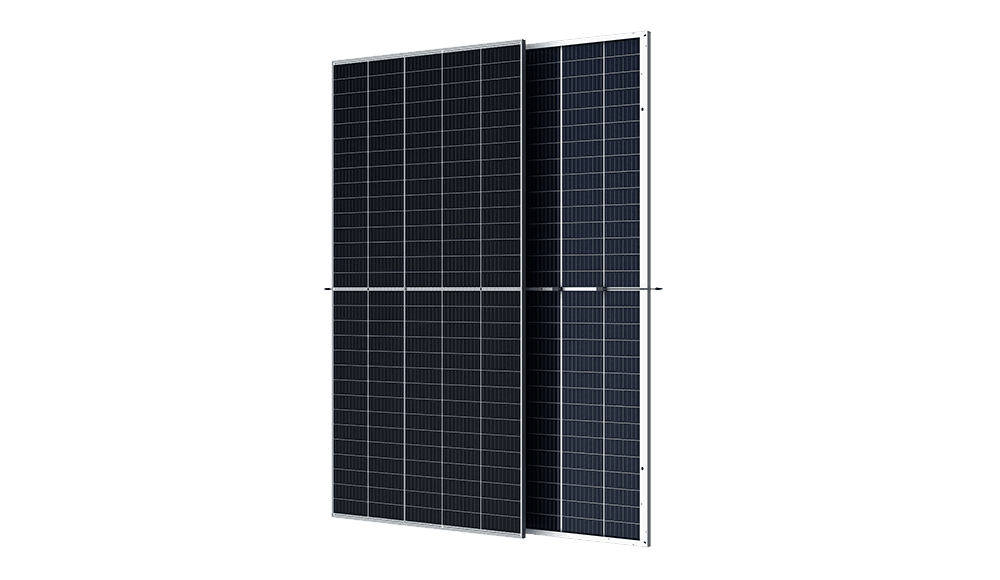

SOLAR PANEL 580 WATTS | JOLYWOOD | Bifacial Half-cut | N-Type TOPCon | 144 Cells PV Module | Grade A | Power tolerance 0/+5W | L 2278mm W 1134mm D 30mm | 32.50kg | Material Warranty 15 years | Linear Power Warranty 30 years | Efficiency 22.5%
Solar Panel Bifacial Half-cut N-Type TOPCon 580 Wp
Ref: JW-HD144N-580WIn Stock
Strengths
- Better Weak Illumination - Response Higher power output even under low-light environments like on cloudy or foggy days
Better Temperature Coefficient -Higher power generation under working conditions, thanks to passivating contact cell technology
Wider Applicability- More application scenes like BIPV, vertical installation, snowfield, high-humid, windy and dusty area
GENERAL DATA
- N-Type TOPCon
- Framed
- JW-HD144N-580W
- A
- 144
- 91 x 182 mm
- 6 x 24
DIMENSION AND WEIGHT
- Length 2,278 mmWidth 1,134 mmDepth 30 mm
- 32.50 kg
- 2.58 m²
MECHANICAL CHARACTERISTICS
- Framed
- Anodised Aluminium
- IP68
- 3
Warranty
- 15 years
- 30 years
ELECTRICAL DATA AT STC
Standard Test Conditions
Irradiance 1000W/m2, Cell Temperature 25˚C & AM1.5
- 580 Wp
- 43.2 V
- 13.43 A
- 51.48 V
- 14.36 A
- 22.5 %
- 0/+5 W
ELECTRICAL DATA AT NOCT
Nominal Operating Cell Temperature:
Irradiance 800W/m2, Ambient Temperature 20˚C & Wind Speed 1m/s
- 440 W
- 40.6 V
- 10.84 A
- 49.1 V
- 11.46 A
TEMPERATURE COEFFICIENTS
- 42 ± 2˚C
- -0.3 %/˚C
- -0.25 %/˚C
- -0.045 %/˚C
MAXIMUM RATING
- IEC 1500 V
- 30 A
- -40 ˚C ~ +85 ˚C
KEY INFORMATION
- JOLYWOOD
- CHINA
- MANUFACTURER
- 2008
- >1000 people
- 410 Watts to 700 Watts
Production
- >10000 m²
- >10 Units
