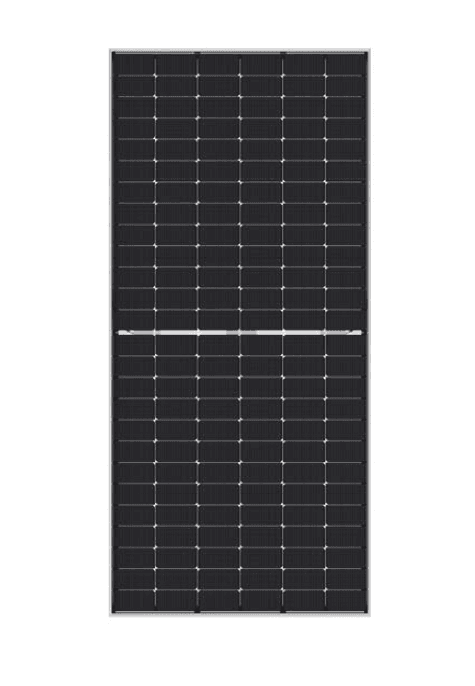

SOLAR PANEL 605 WATTS | FULL BLACK | JINKO SOLAR | Bifacial Half-cut | N-Type TOPCon | 156 Cells PV Module | Power tolerance 0/+3W | L 2465mm W 1134mm D 30mm | 34.60kg | Material Warranty 12 years | Linear Power Warranty 30 years | Efficiency 21.6%
Solar Panel Bifacial Half-cut N-Type TOPCon 605 Wp
Ref: JKM605N-78HL4-BDVIn Stock
Strengths
- Enhanced Mechanical Load
SMBB Technology
Higher Power Output
GENERAL DATA
- N-Type TOPCon
- Framed
- JKM605N-78HL4-BDV
- 156
DIMENSION AND WEIGHT
- Length 2,465 mmWidth 1,134 mmDepth 30 mm
- 34.60 kg
- 2.80 m²
MECHANICAL CHARACTERISTICS
- Framed
- Anodised Aluminium
- IP68
- Ø 4 mm² / 400 mm
Warranty
- 12 years
- 30 years
- 12 years; 92 %30 years; 87 %
HIGHER LIFETIME POWER YIELD
- 1 %
- 0.4 %
ELECTRICAL DATA AT STC
Standard Test Conditions
Irradiance 1000W/m2, Cell Temperature 25˚C & AM1.5
- 605 Wp
- 45.42 V
- 13.32 A
- 55.17 V
- 13.95 A
- 21.6 %
- 0/+3 W
ELECTRICAL DATA AT NOCT
Nominal Operating Cell Temperature:
Irradiance 800W/m2, Ambient Temperature 20˚C & Wind Speed 1m/s
- 455 W
- 42.23 V
- 10.77 A
- 52.41 V
- 11.26 A
TEMPERATURE COEFFICIENTS
- 45 ± 2˚C
- -0.29 %/˚C
- -0.25 %/˚C
- -0.045 %/˚C
MAXIMUM RATING
- IEC 1500 V
- 30 A
- -40 ˚C ~ +85 ˚C
KEY INFORMATION
- JINKO SOLAR
- CHINA
- MANUFACTURER
- Millions $ >100
- >1000 people
- 320 Watts to 675 Watts
Production
- >10000 m²
- >10 Units
- 10,000 MegaWatts
