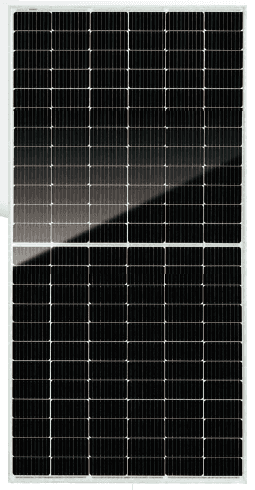

SOLAR PANEL 400 WATTS | KINSE SOLAR | Half-cut | Monocrystalline | 108 Cells PV Module | Grade A | Power tolerance 0/+3W | L 1724mm W 1134mm D 35mm | 21.00kg | Material Warranty 10 years | Linear Power Warranty 25 years | Efficiency 20.5%
Solar Panel Half-cut Monocrystalline 400 Wp
Ref: KS400-108-M182In Stock
GENERAL DATA
- Monocrystalline
- Framed
- KS400-108-M182
- A
- 108
DIMENSION AND WEIGHT
- Length 1,724 mmWidth 1,134 mmDepth 35 mm
- 21 kg
- 1.96 m²
MECHANICAL CHARACTERISTICS
- 3.2 mm
- Framed
- Anodised Aluminium
- EVA
- IP68
- Ø 4 mm² / 400 mm
- MC4
Warranty
- 10 years
- 25 years
- 1 years; 98 %25 years; 85 %
HIGHER LIFETIME POWER YIELD
- 2 %
- 2.6 %
- 0.6 %
ELECTRICAL DATA AT STC
Standard Test Conditions
Irradiance 1000W/m2, Cell Temperature 25˚C & AM1.5
- 400 Wp
- 30.42 V
- 13.15 A
- 36.98 V
- 13.78 A
- 20.5 %
- 0/+3 W
ELECTRICAL DATA AT NOCT
Nominal Operating Cell Temperature:
Irradiance 800W/m2, Ambient Temperature 20˚C & Wind Speed 1m/s
- 298 W
- 28.42 V
- 10.47 A
- 34.9 V
- 11.13 A
TEMPERATURE COEFFICIENTS
- 45 ± 2˚C
- -0.35 %/˚C
- -0.28 %/˚C
- -0.048 %/˚C
MAXIMUM RATING
- IEC 1500 V
- 25 A
- -40 ˚C ~ +85 ˚C
- 5400 Pa
- 2400 Pa
KEY INFORMATION
- KINSE SOLAR
- CHINA
- MANUFACTURER
- 2013
- Millions $ 50-100
- 101-200 people
- 100 Watts to 560 Watts
Production
- >10000 m²
- 1,000 MegaWatts
