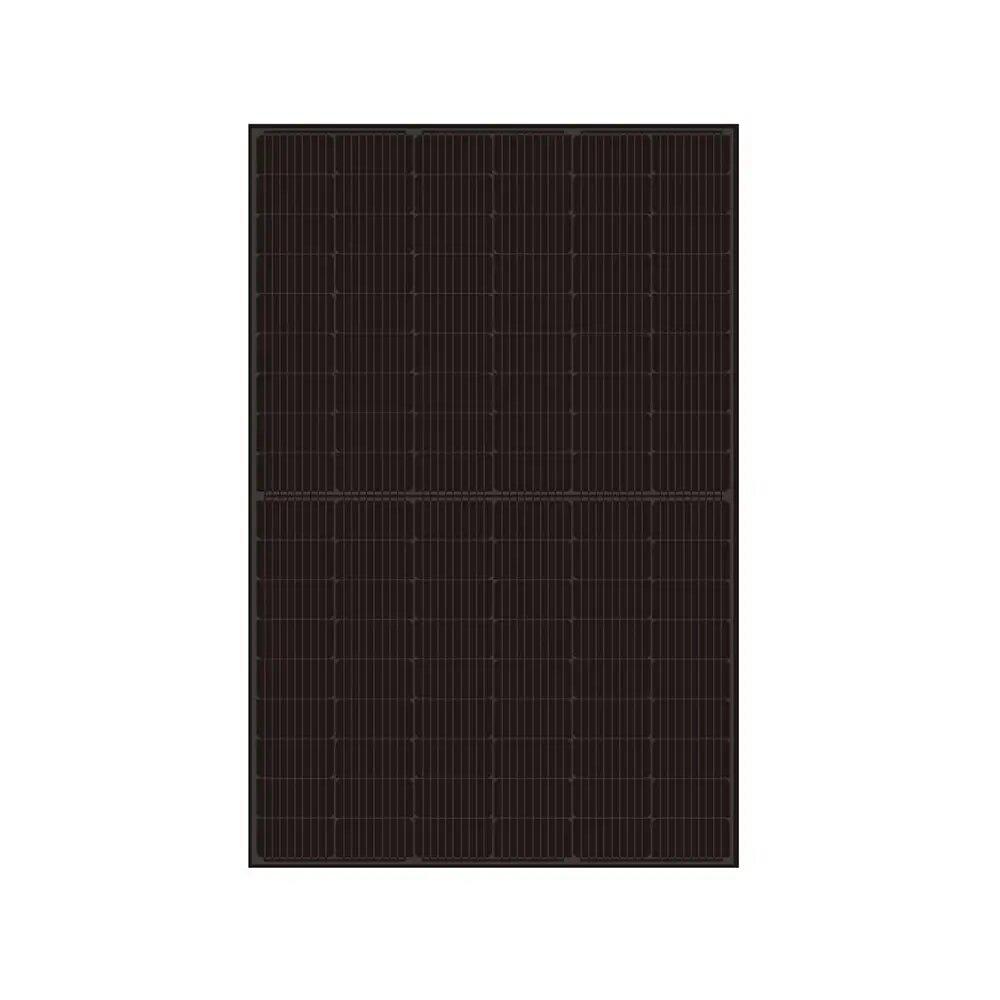

SOLAR PANEL 460 WATTS | FULL BLACK | OSDA | Half-cut | Monocrystalline | 120 Cells PV Module | Grade A | Power tolerance 0/+3W | L 1903mm W 1134mm D 30mm | 23.80kg | Material Warranty 12 years | Linear Power Warranty 30 years | Efficiency 21.3%
Solar Panel Half-cut Monocrystalline 460 Wp
Ref: ODA460-30V-MHBIn Stock
Strengths
- Half-cut technology
Lower cost
Excellent performance of PID resistance
GENERAL DATA
- Monocrystalline
- Framed
- ODA460-30V-MHB
- A
- 120
- 91 x 182 mm
- 10 x 12
- 10
DIMENSION AND WEIGHT
- Length 1,903 mmWidth 1,134 mmDepth 30 mm
- 23.80 kg
- 2.16 m²
MECHANICAL CHARACTERISTICS
- 3.2 mm
- Framed
- Anodised Aluminium
- EVA
- IP68
- 3
- Ø 4 mm² / 350 mm
- MC4
Warranty
- 12 years
- 30 years
- 1 years; 98 %30 years; 85 %
HIGHER LIFETIME POWER YIELD
- 2 %
- 2.4 %
- 0.4 %
ELECTRICAL DATA AT STC
Standard Test Conditions
Irradiance 1000W/m2, Cell Temperature 25˚C & AM1.5
- 460 Wp
- 35.11 V
- 13.11 A
- 41.8 V
- 13.93 A
- 21.3 %
- 0/+3 W
ELECTRICAL DATA AT NOCT
Nominal Operating Cell Temperature:
Irradiance 800W/m2, Ambient Temperature 20˚C & Wind Speed 1m/s
- 342.2 W
- 32.61 V
- 10.5 A
- 39.14 V
- 11.22 A
TEMPERATURE COEFFICIENTS
- 45 ± 2˚C
- -0.35 %/˚C
- -0.285 %/˚C
- -0.045 %/˚C
MAXIMUM RATING
- IEC 1500 V
- 25 A
- -40 ˚C ~ +85 ˚C
- 5400 Pa
- 2400 Pa
KEY INFORMATION
- OSDA
- CHINA
- MANUFACTURER
- 2009
- 501-1000 people
- 290 Watts to 460 Watts
