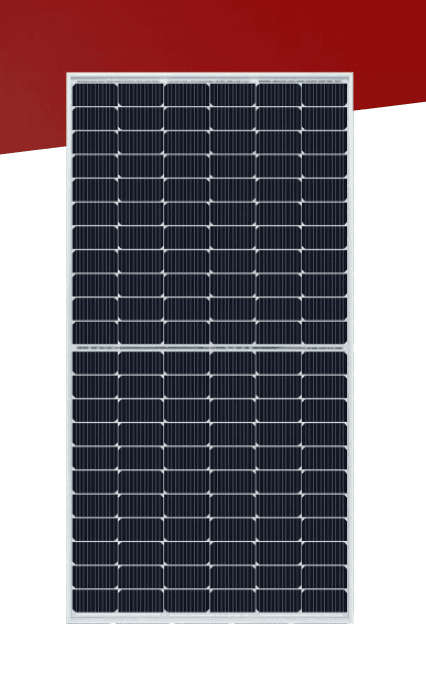

SOLAR PANEL 505 WATTS | LUXEN SOLAR | Half-cut | Monocrystalline | 132 Cells PV Module | Power tolerance 0/+5W | L 2094mm W 1134mm D 35mm | 25.50kg | Material Warranty 12 years | Efficiency 21.3%
Solar Panel Half-cut Monocrystalline 505 Wp
Ref: LNVT-505MIn Stock
Strengths
- MBB Technology
Half Cut Cell Technology
Less Hot Spot Shading Effects
GENERAL DATA
- Monocrystalline
- Framed
- LNVT-505M
- 132
- 182 x 182 mm
- 6 x 22
DIMENSION AND WEIGHT
- Length 2,094 mmWidth 1,134 mmDepth 35 mm
- 25.50 kg
- 2.37 m²
MECHANICAL CHARACTERISTICS
- 3.2 mm
- Framed
- Anodised Aluminium
- IP68
- 3
- Ø 4 mm² / 300 mm
- MC4
Warranty
- 12 years
- 12 years; 90 %25 years; 85 %
HIGHER LIFETIME POWER YIELD
- 2 %
ELECTRICAL DATA AT STC
Standard Test Conditions
Irradiance 1000W/m2, Cell Temperature 25˚C & AM1.5
- 505 Wp
- 38.88 V
- 12.99 A
- 46.83 V
- 13.88 A
- 21.3 %
- 0/+5 W
ELECTRICAL DATA AT NOCT
Nominal Operating Cell Temperature:
Irradiance 800W/m2, Ambient Temperature 20˚C & Wind Speed 1m/s
- 381 W
- 36.53 V
- 10.43 A
- 44.52 V
- 11.05 A
TEMPERATURE COEFFICIENTS
- 45 ± 2˚C
- -0.36 %/˚C
- -0.28 %/˚C
- -0.05 %/˚C
MAXIMUM RATING
- IEC 1500 V
- 25 A
- -40 ˚C ~ +85 ˚C
- 5400 Pa
KEY INFORMATION
- LUXEN SOLAR
- CHINA
- MANUFACTURER
- 2005
- 501-1000 people
- 395 Watts to 670 Watts
Production
- >10 Units
- 100 MegaWatts
