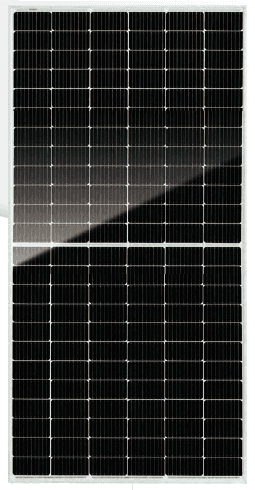

SOLAR PANEL 530 WATTS | CONTENDRE SOLAR | Half-cut | Monocrystalline | 144 Cells PV Module | Power tolerance 0/+3W | L 2261mm W 1134mm D 35mm | 28.50kg | Material Warranty 12 years | Linear Power Warranty 25 years | Efficiency 20.7%
Solar Panel Half-cut Monocrystalline 530 Wp
Ref: CG-X144-530WIn Stock
Strengths
- Multi Busbar Cell Technology
Lower BOS Costs
All-Weather Technology
GENERAL DATA
- Monocrystalline
- Framed
- CG-X144-530W
- 144
DIMENSION AND WEIGHT
- Length 2,261 mmWidth 1,134 mmDepth 35 mm
- 28.50 kg
- 2.56 m²
MECHANICAL CHARACTERISTICS
- 3.2 mm
- Framed
- Anodised Aluminium
- IP68
- MC4 COMPATIBLE
Warranty
- 12 years
- 25 years
ELECTRICAL DATA AT STC
Standard Test Conditions
Irradiance 1000W/m2, Cell Temperature 25˚C & AM1.5
- 530 Wp
- 42.4 V
- 12.5 A
- 49.23 V
- 13.45 A
- 20.7 %
- 0/+3 W
ELECTRICAL DATA AT NOCT
Nominal Operating Cell Temperature:
Irradiance 800W/m2, Ambient Temperature 20˚C & Wind Speed 1m/s
- 384 W
- 38.23 V
- 10.04 A
- 44.77 V
- 10.8 A
TEMPERATURE COEFFICIENTS
- 44 ± 2˚C
- -0.278 %/˚C
- -0.23 %/˚C
- -0.05 %/˚C
MAXIMUM RATING
- IEC 1500 V
- 25 A
- -40 ˚C ~ +85 ˚C
- 5400 Pa
- 2400 Pa
STANDARD
- II
- A
KEY INFORMATION
- CONTENDRE SOLAR
- INDIA
- MANUFACTURER
- 1984
- Millions $ 50-100
- 301-500 people
- 255 Watts to 545 Watts
Production
- 3001-5000 m²
- 6 Units
- 300 MegaWatts
