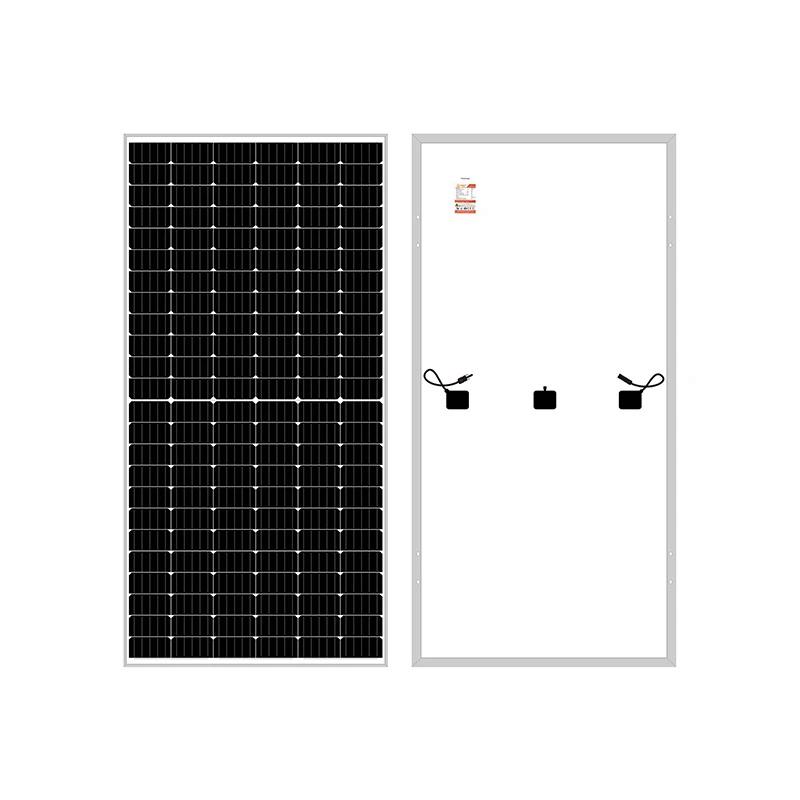

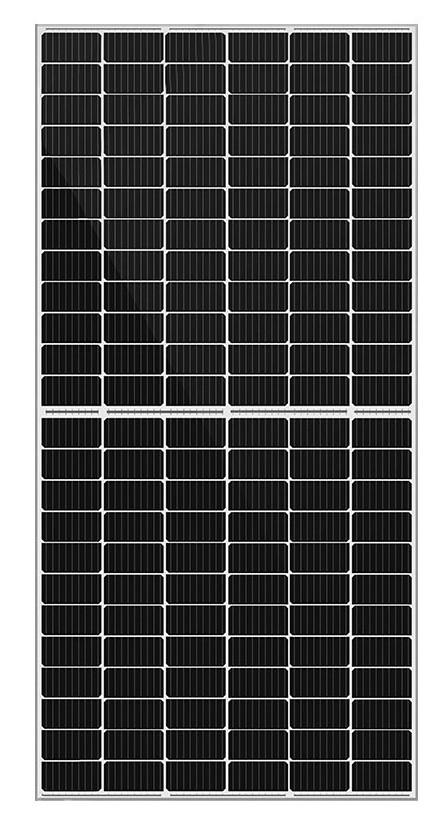

SOLAR PANEL 530 WATTS | JA SOLAR | Half-cut | Monocrystalline | 144 Cells PV Module | Grade A | Power tolerance 0/+5W | L 2278mm W 1134mm D 30mm | 27.30kg | Material Warranty 12 years | Linear Power Warranty 25 years | Efficiency 20.5%
Solar Panel Half-cut Monocrystalline 530 Wp
Ref: JAM72S30-530MRIn Stock
Strengths
- Higher output power
Less shading and lower resistive loss
Better mechanical loading tolerance
GENERAL DATA
- Monocrystalline
- Framed
- JAM72S30-530MR
- A
- 144
DIMENSION AND WEIGHT
- Length 2,278 mmWidth 1,134 mmDepth 30 mm
- 27.30 kg
- 2.58 m²
MECHANICAL CHARACTERISTICS
- Framed
- Anodised Aluminium
- [object Object]
- IP68
- 3
- Ø 4 mm² / 300 mm
- MC4
Warranty
- 12 years
- 25 years
- 1 years; 98 %25 years; 83 %
HIGHER LIFETIME POWER YIELD
- 2 %
- 1.4 %
- 0.6 %
ELECTRICAL DATA AT STC
Standard Test Conditions
Irradiance 1000W/m2, Cell Temperature 25˚C & AM1.5
- 530 Wp
- 41.31 V
- 12.83 A
- 49.3 V
- 13.72 A
- 20.5 %
- 0/+5 W
ELECTRICAL DATA AT NOCT
Nominal Operating Cell Temperature:
Irradiance 800W/m2, Ambient Temperature 20˚C & Wind Speed 1m/s
- 401 W
- 38.57 V
- 10.39 A
- 46.18 V
- 11.01 A
TEMPERATURE COEFFICIENTS
- 45 ± 2˚C
- -0.35 %/˚C
- -0.275 %/˚C
- -0.045 %/˚C
MAXIMUM RATING
- IEC 1000 VUL 1500 V
- 25 A
- -40 ˚C ~ +85 ˚C
- 5400 Pa
- 2400 Pa
STANDARD
- II
KEY INFORMATION
- JA SOLAR
- CHINA
- MANUFACTURER
- 2011
- Millions $ >100
- >1000 people
- 400 Watts to 635 Watts
Production
- >10000 m²
- 201,000 MegaWatts
