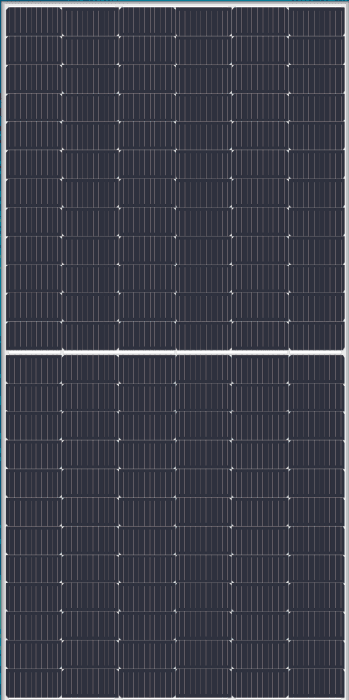

SOLAR PANEL 540 WATTS | AK SOLAR | Half-cut | Monocrystalline | 144 Cells PV Module | Power tolerance 0/+3W | L 2278mm W 1134mm D 35mm | 28.60kg | Material Warranty 12 years | Linear Power Warranty 25 years | Efficiency 20.9%
Solar Panel Half-cut Monocrystalline 540 Wp
Ref: SK9612M(HV)CIn Stock
Strengths
- Excellent temperature performance
Series-parallel wiring mode results in reduced shading loss
Half-Cut technique leads to increased power output
GENERAL DATA
- Monocrystalline
- Framed
- SK9612M(HV)C
- 144
- 182 x 182 mm
- 6 x 24
- 5
DIMENSION AND WEIGHT
- Length 2,278 mmWidth 1,134 mmDepth 35 mm
- 28.60 kg
- 2.58 m²
MECHANICAL CHARACTERISTICS
- 3.2 mm
- Framed
- Anodised Aluminium
- IP68
- 3
Warranty
- 12 years
- 25 years
- 10 years; 90 %25 years; 85 %
HIGHER LIFETIME POWER YIELD
- 2 %
- 2.5 %
- 0.5 %
ELECTRICAL DATA AT STC
Standard Test Conditions
Irradiance 1000W/m2, Cell Temperature 25˚C & AM1.5
- 540 Wp
- 41.96 V
- 12.87 A
- 49.6 V
- 13.74 A
- 20.9 %
- 0/+3 W
ELECTRICAL DATA AT NOCT
Nominal Operating Cell Temperature:
Irradiance 800W/m2, Ambient Temperature 20˚C & Wind Speed 1m/s
- 402 W
- 38.29 V
- 10.5 A
- 46.12 V
- 11.1 A
TEMPERATURE COEFFICIENTS
- 45 ± 2˚C
- -0.34 %/˚C
- -0.26 %/˚C
- -0.05 %/˚C
MAXIMUM RATING
- IEC 1000 VUL 1500 V
- 25 A
- -40 ˚C ~ +85 ˚C
- 5400 Pa
- 2400 Pa
STANDARD
- C
KEY INFORMATION
- AK SOLAR
- CHINA
- MANUFACTURER
- 2006
- Millions $ >100
- >1000 people
- 60 Watts to 700 Watts
Production
- >10000 m²
- >10 Units
- 600 MegaWatts
