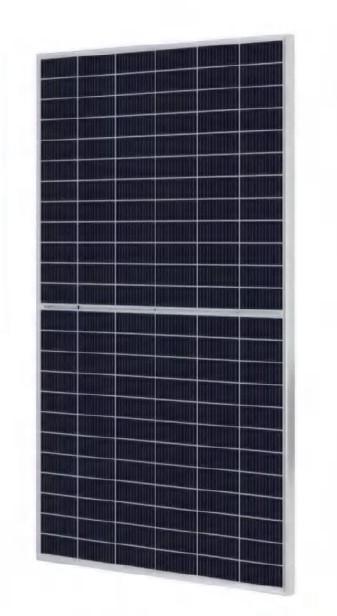

SOLAR PANEL 540 WATTS | ALICOSOLAR | Half-cut | Monocrystalline | 144 Cells PV Module | Power tolerance 0/+5W | L 2276mm W 1133mm D 35mm | 29.40kg | Material Warranty 10 years | Linear Power Warranty 25 years | Efficiency 21%


Solar Panel Half-cut Monocrystalline 540 Wp

Ref: HY-540W
In Stock

Strengths

    Anti-reflective and self-cleaning surface reduces power loss from dirt and dust.
    Excellent mechnical load resistance: certified to with stand high wind loads(2400Pa) and snow load(5400Pa).
    3.2mm high transmission, low Iron tempered glass

GENERAL DATA

  • Monocrystalline
  • Framed
  • HY-540W
  • 144

DIMENSION AND WEIGHT

  • Length 2,276 mmWidth 1,133 mmDepth 35 mm
  • 29.40 kg
  • 2.58

MECHANICAL CHARACTERISTICS

  • 3.2 mm
  • Framed
  • Anodised Aluminium
  • IP68
  • 3
  • MC COMPATIBLE

Warranty

  • 10 years
  • 25 years

ELECTRICAL DATA AT STC

Standard Test Conditions

Irradiance 1000W/m2, Cell Temperature 25˚C & AM1.5

  • 540 Wp
  • 41.01 V
  • 13.17 A
  • 49.53 V
  • 13.85 A
  • 21 %
  • 0/+5 W

ELECTRICAL DATA AT NOCT

Nominal Operating Cell Temperature:

Irradiance 800W/m2, Ambient Temperature 20˚C & Wind Speed 1m/s

  • 402 W
  • 38.19 V
  • 10.52 A
  • 46.75 V
  • 11.19 A

TEMPERATURE COEFFICIENTS

  • 44 ± 2˚C
  • -0.35 %/˚C
  • -0.27 %/˚C
  • -0.048 %/˚C

MAXIMUM RATING

  • IEC 1500 V
  • 25 A
  • -40 ˚C ~ +85 ˚C
  • 5400 Pa
  • 2400 Pa

KEY INFORMATION

  • ALICOSOLAR
  • CHINA
  • MANUFACTURER
  • Millions $ 50-100
  • >1000 people
  • 250 Watts to 690 Watts

Production

  • >10000
  • 6 Units
  • 500,000 MegaWatts
