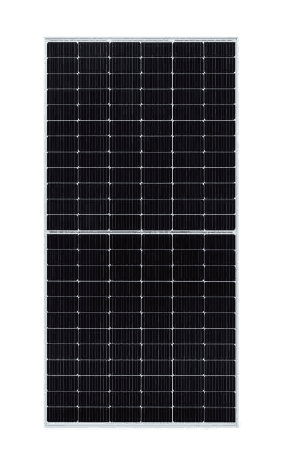

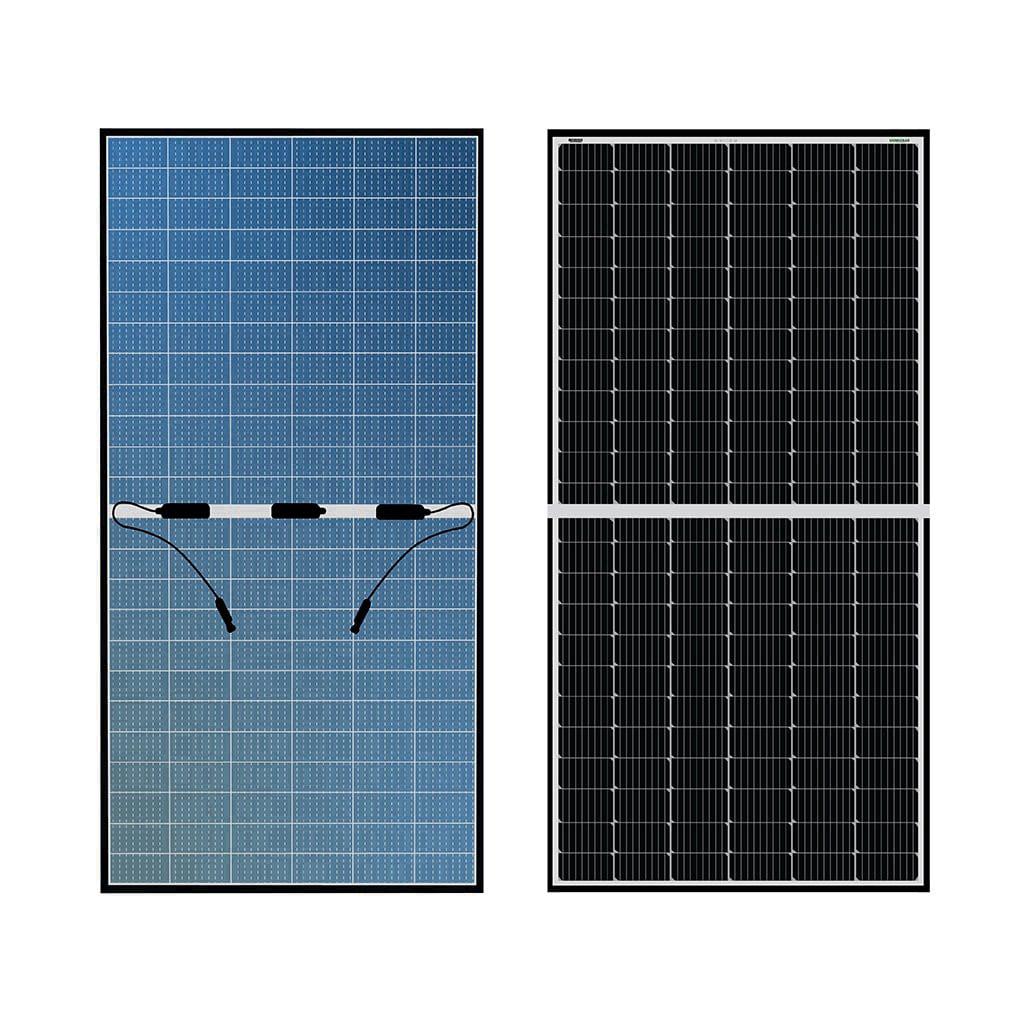

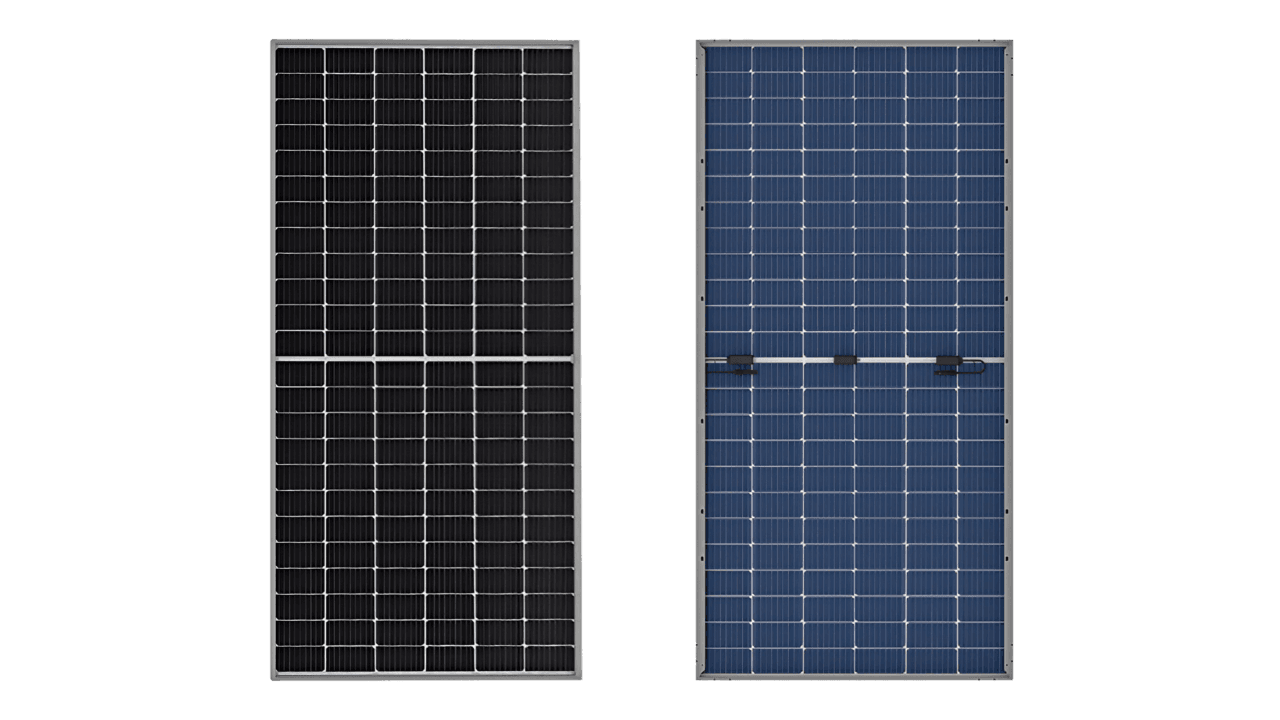

SOLAR PANEL 540 WATTS | FULL BLACK | FREESOLAR | Half-cut | Monocrystalline | 144 Cells PV Module | Power tolerance 0/+5W | L 2279mm W 1134mm D 35mm | 29.10kg | Material Warranty 12 years | Linear Power Warranty 25 years | Efficiency 20.9%
Solar Panel Half-cut Monocrystalline 540 Wp
Ref: FS540-144MHIn Stock
GENERAL DATA
- Monocrystalline
- Framed
- FS540-144MH
- 144
- 91 x 182 mm
- 6 x 24

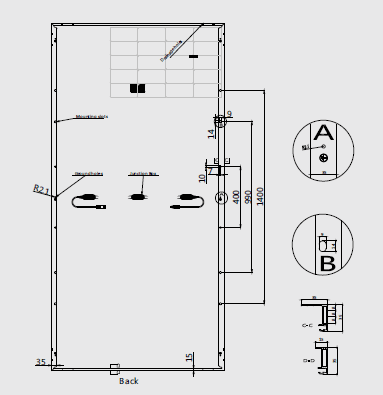

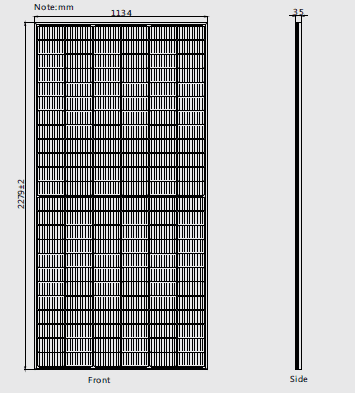

DIMENSION AND WEIGHT
- Length 2,279 mmWidth 1,134 mmDepth 35 mm
- 29.10 kg
- 2.58 m²
MECHANICAL CHARACTERISTICS
- 3.2 mm
- Framed
- Anodised Aluminium
- IP65
- Ø 4 mm² / 300 mm
- MC4
Warranty
- 12 years
- 25 years
- 12 years; 93 %25 years; 86 %
HIGHER LIFETIME POWER YIELD
- 1.5 %
- 2 %
ELECTRICAL DATA AT STC
Standard Test Conditions
Irradiance 1000W/m2, Cell Temperature 25˚C & AM1.5
- 540 Wp
- 41.65 V
- 12.97 A
- 49.5 V
- 13.78 A
- 20.9 %
- 0/+5 W
ELECTRICAL DATA AT NOCT
Nominal Operating Cell Temperature:
Irradiance 800W/m2, Ambient Temperature 20˚C & Wind Speed 1m/s
- 403 W
- 38.57 V
- 10.44 A
- 45.99 V
- 11.19 A
TEMPERATURE COEFFICIENTS
- 45 ± 2˚C
- -0.35 %/˚C
- -0.28 %/˚C
- -0.048 %/˚C
MAXIMUM RATING
- IEC 1500 VUL 1000 V
- 25 A
- -40 ˚C ~ +85 ˚C
- 5400 Pa
- 2400 Pa
KEY INFORMATION
- FREESOLAR
- CHINA
- MANUFACTURER
