SOLAR PANEL 550 WATTS | Half-cut | Monocrystalline | 144 Cells PV Module | Grade A | Power tolerance 0/+3W | L 2279mm W 1134mm D 35mm | 29.10kg | Material Warranty 10 years | Linear Power Warranty 25 years | Efficiency 21.3%

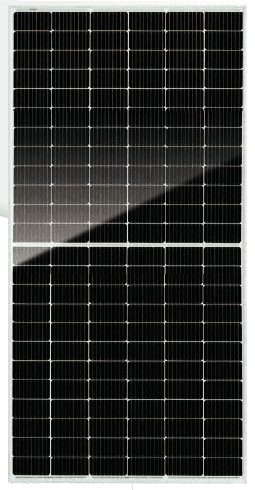

Solar Panel Half-cut Monocrystalline 550 Wp
Ref: KS550-144-M182In Stock
GENERAL DATA
- Monocrystalline
- Framed
- KS550-144-M182
- A
- 144
DIMENSION AND WEIGHT
- Length 2,279 mmWidth 1,134 mmDepth 35 mm
- 29.10 kg
- 2.58 m²
MECHANICAL CHARACTERISTICS
- 3.2 mm
- Framed
- Anodised Aluminium
- EVA
- IP68
- Ø 4 mm² / 400 mm
- MC4
Warranty
- 10 years
- 25 years
- 1 years; 98 %25 years; 85 %
HIGHER LIFETIME POWER YIELD
- 2 %
- 2.6 %
- 0.6 %
ELECTRICAL DATA AT STC
Standard Test Conditions
Irradiance 1000W/m2, Cell Temperature 25˚C & AM1.5
- 550 Wp
- 42.05 V
- 13.08 A
- 49.88 V
- 14.01 A
- 21.3 %
- 0/+3 W
ELECTRICAL DATA AT NOCT
Nominal Operating Cell Temperature:
Irradiance 800W/m2, Ambient Temperature 20˚C & Wind Speed 1m/s
- 415 W
- 38.9 V
- 10.67 A
- 46.9 V
- 11.22 A
TEMPERATURE COEFFICIENTS
- 45 ± 2˚C
- -0.35 %/˚C
- -0.28 %/˚C
- -0.048 %/˚C
MAXIMUM RATING
- IEC 1500 V
- 25 A
- -40 ˚C ~ +85 ˚C
- 5400 Pa
- 2400 Pa
KEY INFORMATION
- CHINA
- MANUFACTURER
- 2013
- Millions $ 50-100
- 101-200 people
- 100 Watts to 560 Watts
Production
- >10000 m²
- 1,000 MegaWatts
