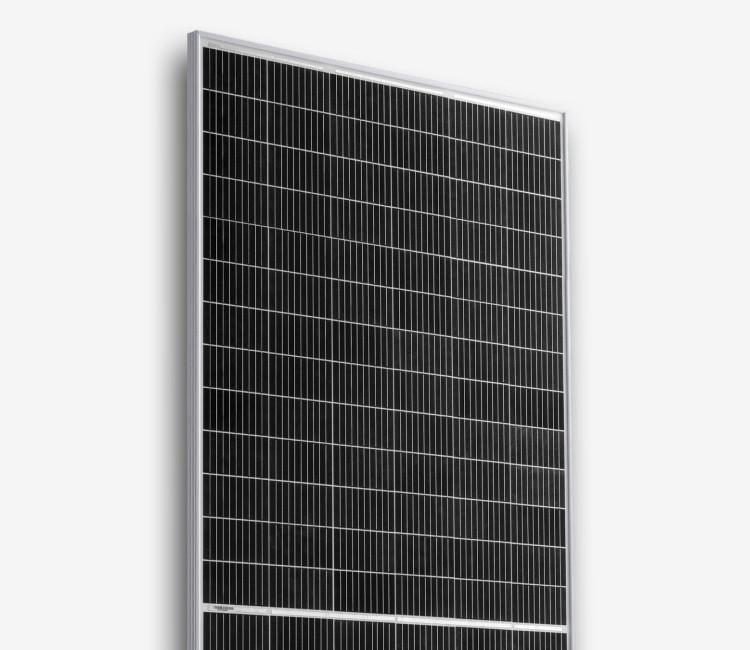

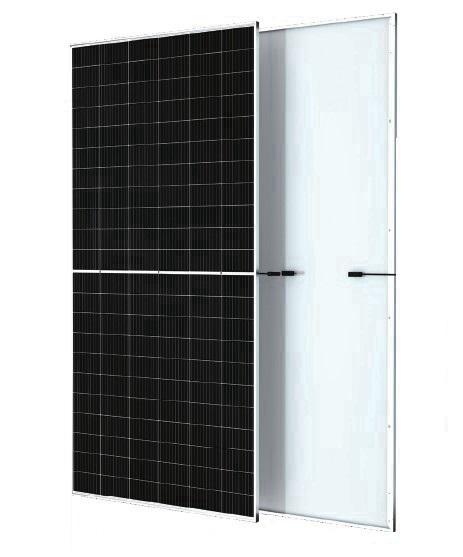

SOLAR PANEL 595 WATTS | TRINA SOLAR | Half-cut | Monocrystalline | 132 Cells PV Module | Grade A | Power tolerance 0/+5W | L 2384mm W 1134mm D 35mm | 28.50kg | Material Warranty 12 years | Linear Power Warranty 25 years | Efficiency 22%
Solar Panel Half-cut Monocrystalline 595 Wp
Ref: TSM-VERTEXN-595WIn Stock
Strengths
- • Lower LCOE (Levelized Cost Of Energy), reduced BOS (Balance of System) cost, shorter payback time • Designed for compatibility with existing mainstream system components • Higher return on Investment
• Minimized micro-cracks with innovative non-destructive cutting technology • Ensured PID resistance through cell process and module material control • Resistant to harsh environments such as salt, ammonia, sand, high temperature and high humidity areas • Mechanical performance up to 5400 Pa positive load and 2400 Pa negative load
• Excellent IAM (Incident Angle Modi er) and low irradiation performance, validated by 3rd party certi cations • The unique design provides optimized energy production under inter-row shading conditions • Lower temperature coe cient (-0.30%) and operating temperature • Up to 30% additional power gain from back side depending on albedo
GENERAL DATA
- Monocrystalline
- Framed
- TSM-VERTEXN-595W
- A
- 132
DIMENSION AND WEIGHT
- Length 2,384 mmWidth 1,134 mmDepth 35 mm
- 28.50 kg
- 2.70 m²
MECHANICAL CHARACTERISTICS
- 3.2 mm
- Framed
- Anodised Aluminium
- EVA/POE
- IP68
- MC4EVO2/TS4*
Warranty
- 12 years
- 25 years
HIGHER LIFETIME POWER YIELD
- 1 %
- 0.4 %
ELECTRICAL DATA AT STC
Standard Test Conditions
Irradiance 1000W/m2, Cell Temperature 25˚C & AM1.5
- 595 Wp
- 39.7 V
- 14.98 A
- 47.8 V
- 15.85 A
- 22 %
- 0/+5 W
ELECTRICAL DATA AT NOCT
Nominal Operating Cell Temperature:
Irradiance 800W/m2, Ambient Temperature 20˚C & Wind Speed 1m/s
- 453 W
- 37.3 V
- 12.15 A
- 45.3 V
- 12.77 A
TEMPERATURE COEFFICIENTS
- 43 ± 2˚C
- -0.3 %/˚C
- -0.24 %/˚C
- -0.04 %/˚C
MAXIMUM RATING
- IEC 1500 V
- 30 A
- -40 ˚C ~ +85 ˚C
- 5400 Pa
- 2400 Pa
KEY INFORMATION
- TRINA SOLAR
- CHINA
- MANUFACTURER
- 1997
- Millions $ >100
- >1000 people
- 390 Watts to 700 Watts
Production
- >10000 m²
- 8 Units
- 170,000 MegaWatts
