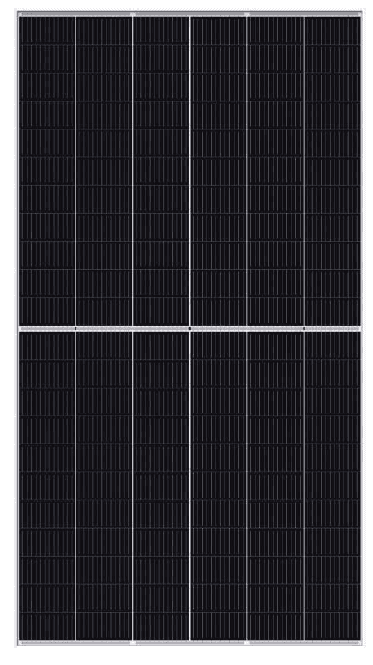

SOLAR PANEL 645 WATTS | FULL BLACK | FREESOLAR | Half-cut | Monocrystalline | 132 Cells PV Module | Power tolerance 0/+5W | L 2384mm W 1303mm D 35mm | 34.00kg | Material Warranty 12 years | Linear Power Warranty 25 years | Efficiency 20.8%
Solar Panel Half-cut Monocrystalline 645 Wp
Ref: FS645-132MHIn Stock
GENERAL DATA
- Monocrystalline
- Framed
- FS645-132MH
- 132

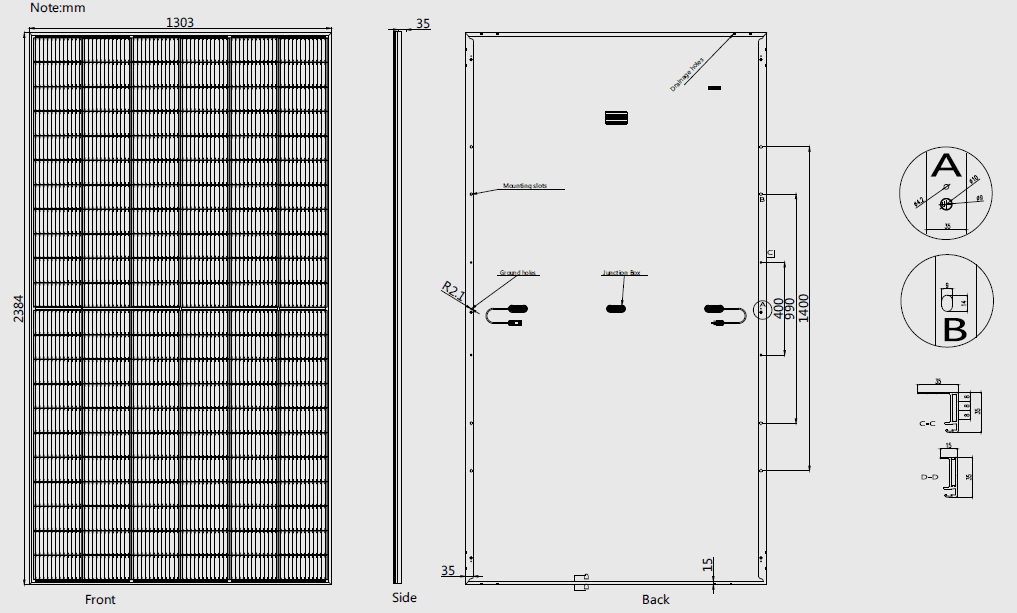

DIMENSION AND WEIGHT
- Length 2,384 mmWidth 1,303 mmDepth 35 mm
- 34 kg
- 3.11 m²
MECHANICAL CHARACTERISTICS
- 3.2 mm
- Framed
- Anodised Aluminium
- EVA
- IP65
- Ø 4 mm² / 300 mm
- MC4
Warranty
- 12 years
- 25 years
- 1 years; 98 %25 years; 85 %
HIGHER LIFETIME POWER YIELD
- 2 %
- 1.5 %
- 0.5 %
ELECTRICAL DATA AT STC
Standard Test Conditions
Irradiance 1000W/m2, Cell Temperature 25˚C & AM1.5
- 645 Wp
- 37.24 V
- 17.32 A
- 45.08 V
- 18.38 A
- 20.8 %
- 0/+5 W
ELECTRICAL DATA AT NOCT
Nominal Operating Cell Temperature:
Irradiance 800W/m2, Ambient Temperature 20˚C & Wind Speed 1m/s
- 486 W
- 34.71 V
- 14.01 A
- 42.38 V
- 14.81 A
TEMPERATURE COEFFICIENTS
- -0.35 %/˚C
- -0.28 %/˚C
- -0.048 %/˚C
MAXIMUM RATING
- IEC 1000 VUL 1500 V
- 30 A
- -40 ˚C ~ +85 ˚C
- 5400 Pa
- 2400 Pa
- 25 mm at 23 m/s
KEY INFORMATION
- FREESOLAR
- CHINA
- MANUFACTURER
