SOLAR PANEL 550 WATTS | CENTRO | Half-cut | Monocrystalline PERC | 144 Cells PV Module | Power tolerance 0/+3W | L 2279mm W 1134mm D 35mm | 27.20kg | Material Warranty 25 years | Efficiency 21.3%

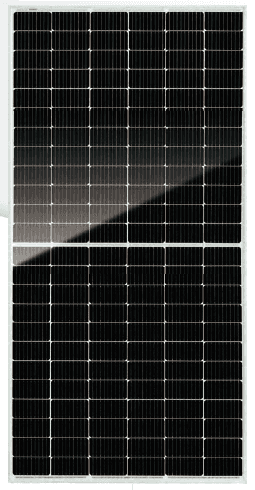

Solar Panel Half-cut Monocrystalline PERC 550 Wp
Ref: CE-550HMIn Stock
Strengths
- Superior craftsmanship, engineering excellence, and meticulous attention ensure longevity and optimal performance
Remain peak performance in extreme environments
Certified for Anti-PID under 85 degrees celcius, 85% RH for 288 hours
GENERAL DATA
- Monocrystalline PERC
- Framed
- CE-550HM
- 144
DIMENSION AND WEIGHT
- Length 2,279 mmWidth 1,134 mmDepth 35 mm
- 27.20 kg
- 2.58 m²
MECHANICAL CHARACTERISTICS
- 3.2 mm
- Framed
- Anodised Aluminium
- IP68
- 3
- Ø 4 mm² / 350 mm
- MC4
Warranty
- 25 years
ELECTRICAL DATA AT STC
Standard Test Conditions
Irradiance 1000W/m2, Cell Temperature 25˚C & AM1.5
- 550 Wp
- 41.28 V
- 13.32 A
- 49.8 V
- 14.01 A
- 21.3 %
- 0/+3 W
TEMPERATURE COEFFICIENTS
- 45 ± 2˚C
- -0.35 %/˚C
- -0.27 %/˚C
- -0.048 %/˚C
KEY INFORMATION
- CENTRO
- CHINA
- MANUFACTURER
- 2022
- Millions $ 5-10
- 501-1000 people
- 50 Watts to 600 Watts
Production
- >10000 m²
- 800 MegaWatts
