SOLAR PANEL 590 WATTS | FULL BLACK | JINKO SOLAR | Half-cut | N-Type TOPCon | 144 Cells PV Module | Power tolerance 0/+3W | L 2278mm W 1134mm D 35mm | 27.00kg | Material Warranty 12 years | Linear Power Warranty 30 years | Efficiency 22.8%

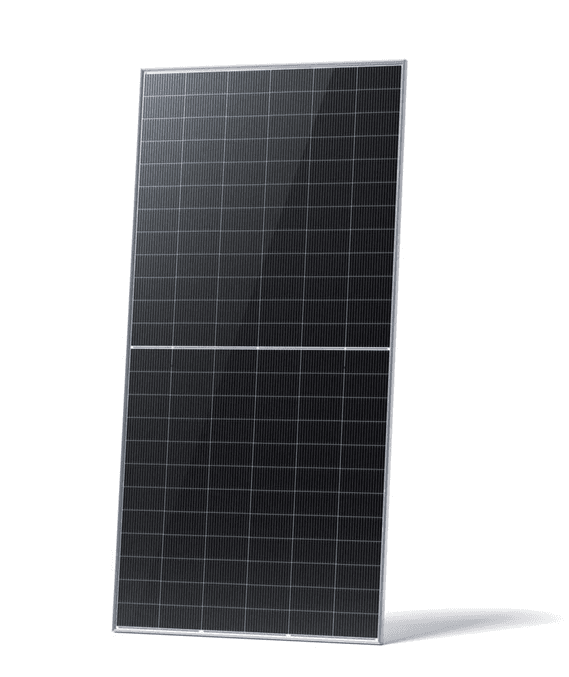

Solar Panel Half-cut N-Type TOPCon 590 Wp
Ref: 72HL4-(V)590WIn Stock
Strengths
- 5 Busbar Solar Cell
High Efficiency
Durability Against Extreme Environmental Conditions
GENERAL DATA
- N-Type TOPCon
- Framed
- 72HL4-(V)590W
- 144

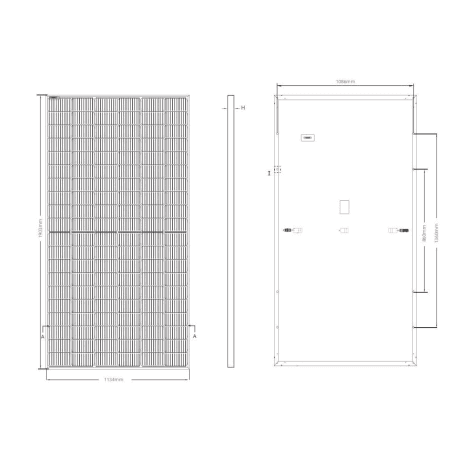

DIMENSION AND WEIGHT
- Length 2,278 mmWidth 1,134 mmDepth 35 mm
- 27 kg
- 2.58 m²
MECHANICAL CHARACTERISTICS
- 3.2 mm
- Framed
- Anodised Aluminium
- IP68
- Ø 4 mm² / 400 mm
Warranty
- 12 years
- 30 years
- 12 years; 90 %30 years; 87 %
HIGHER LIFETIME POWER YIELD
- 1 %
- 0.4 %
ELECTRICAL DATA AT STC
Standard Test Conditions
Irradiance 1000W/m2, Cell Temperature 25˚C & AM1.5
- 590 Wp
- 43.71 V
- 13.5 A
- 52.63 V
- 14.13 A
- 22.8 %
- 0/+3 W
ELECTRICAL DATA AT NOCT
Nominal Operating Cell Temperature:
Irradiance 800W/m2, Ambient Temperature 20˚C & Wind Speed 1m/s
- 445 W
- 41.05 V
- 10.83 A
- 49.99 V
- 11.41 A
TEMPERATURE COEFFICIENTS
- 45 ± 2˚C
- -0.29 %/˚C
- -0.25 %/˚C
- -0.045 %/˚C
MAXIMUM RATING
- IEC 1500 VUL 1000 V
- 25 A
- -40 ˚C ~ +85 ˚C
STANDARD
- II
- C
KEY INFORMATION
- JINKO SOLAR
- CHINA
- MANUFACTURER
- Millions $ >100
- >1000 people
- 320 Watts to 675 Watts
Production
- >10000 m²
- >10 Units
- 10,000 MegaWatts
