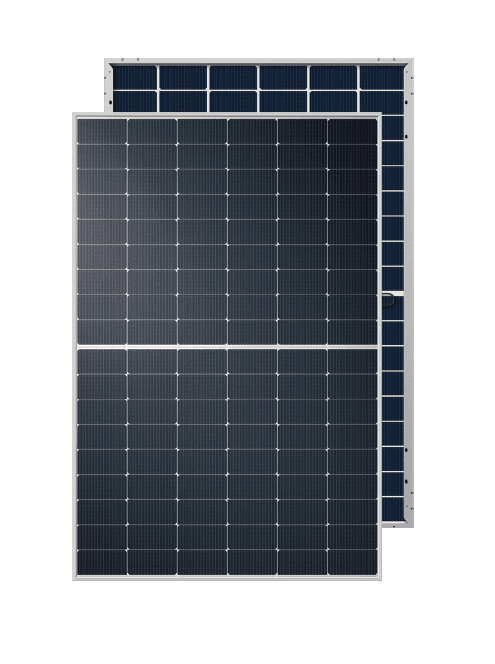

SOLAR PANEL 425 WATTS | JUSTSOLAR | Bifacial Half-cut | N-Type TOPCon | 108 Cells PV Module | Power tolerance 0/+5W | L 1722mm W 1134mm D 30mm | 23.70kg | Material Warranty 12 years | Linear Power Warranty 30 years | Efficiency 21.8%
Solar Panel Bifacial Half-cut N-Type TOPCon 425 Wp
Ref: JST-M10-M-54-MH-425WIn Stock
GENERAL DATA
- N-Type TOPCon
- Framed
- JST-M10-M-54-MH-425W
- 108
DIMENSION AND WEIGHT
- Length 1,722 mmWidth 1,134 mmDepth 30 mm
- 23.70 kg
- 1.95 m²
MECHANICAL CHARACTERISTICS
- Framed
- Anodised Aluminium
- IP68
- 3
- Ø 4 mm² / 300 mm
- MC4
Warranty
- 12 years
- 30 years
- 12 years; 87 %30 years; 87 %
HIGHER LIFETIME POWER YIELD
- 1 %
ELECTRICAL DATA AT STC
Standard Test Conditions
Irradiance 1000W/m2, Cell Temperature 25˚C & AM1.5
- 425 Wp
- 32.18 V
- 13.21 A
- 38.28 V
- 13.89 A
- 21.8 %
- 0/+5 W
ELECTRICAL DATA AT NOCT
Nominal Operating Cell Temperature:
Irradiance 800W/m2, Ambient Temperature 20˚C & Wind Speed 1m/s
- 320 W
- 29.5 V
- 10.85 A
- 36.44 V
- 11.42 A
TEMPERATURE COEFFICIENTS
- 45 ± 2˚C
- -0.3 %/˚C
- -0.25 %/˚C
- -0.046 %/˚C
MAXIMUM RATING
- IEC 1500 V
- 30 A
- -40 ˚C ~ +70 ˚C
- 5400 Pa
- 2400 Pa
KEY INFORMATION
- JUSTSOLAR
- CHINA
- MANUFACTURER
- 2018
- Millions $ >100
- 201-300 people
- 70 Watts to 700 Watts
Production
- >10000 m²
- >10 Units
- 200 MegaWatts
