SOLAR PANEL 380 WATTS | LUXEN SOLAR | Half-cut | Monocrystalline | 120 Cells PV Module | Power tolerance 0/+5W | L 1756mm W 1039mm D 35mm | 19.50kg | Material Warranty 12 years | Efficiency 20.8%

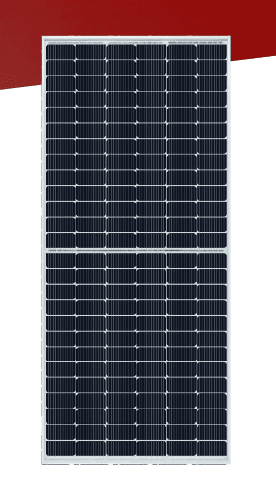

Solar Panel Half-cut Monocrystalline 380 Wp
Ref: LNSK-380MIn Stock
Strengths
- MBB Technology
Half Cut Cell Technology
Less Hot Spot Shading Effects
GENERAL DATA
- Monocrystalline
- Framed
- LNSK-380M
- 120
- 166 x 166 mm
- 6 x 20
DIMENSION AND WEIGHT
- Length 1,756 mmWidth 1,039 mmDepth 35 mm
- 19.50 kg
- 1.82 m²
MECHANICAL CHARACTERISTICS
- 3.2 mm
- Framed
- Anodised Aluminium
- IP68
- 3
- Ø 4 mm² / 300 mm
- MC4
Warranty
- 12 years
- 12 years; 90 %25 years; 85 %
HIGHER LIFETIME POWER YIELD
- 2 %
ELECTRICAL DATA AT STC
Standard Test Conditions
Irradiance 1000W/m2, Cell Temperature 25˚C & AM1.5
- 380 Wp
- 34.55 V
- 11 A
- 41.57 V
- 11.5 A
- 20.8 %
- 0/+5 W
ELECTRICAL DATA AT NOCT
Nominal Operating Cell Temperature:
Irradiance 800W/m2, Ambient Temperature 20˚C & Wind Speed 1m/s
- 277 W
- 31.48 V
- 8.8 A
- 37.86 V
- 9.25 A
TEMPERATURE COEFFICIENTS
- 45 ± 2˚C
- -0.36 %/˚C
- -0.28 %/˚C
- -0.05 %/˚C
MAXIMUM RATING
- IEC 1500 V
- 20 A
- -40 ˚C ~ +85 ˚C
- 5400 Pa
KEY INFORMATION
- LUXEN SOLAR
- CHINA
- MANUFACTURER
- 2005
- 501-1000 people
- 395 Watts to 670 Watts
Production
- >10 Units
- 100 MegaWatts
