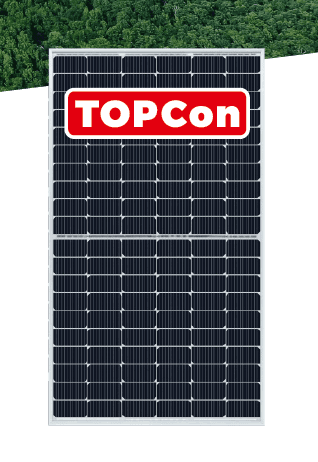

SOLAR PANEL 480 WATTS | LUXEN SOLAR | Half-cut | N-Type TOPCon | 120 Cells PV Module | Power tolerance 0/+5W | L 1910mm W 1134mm D 35mm | 23.00kg | Material Warranty 15 years | Linear Power Warranty 30 years | Efficiency 22.2%
Solar Panel Half-cut N-Type TOPCon 480 Wp
Ref: LNVK-480NIn Stock
GENERAL DATA
- N-Type TOPCon
- Framed
- LNVK-480N
- 120
DIMENSION AND WEIGHT
- Length 1,910 mmWidth 1,134 mmDepth 35 mm
- 23 kg
- 2.17 m²
MECHANICAL CHARACTERISTICS
- 3.2 mm
- Framed
- Anodised Aluminium
- IP68
- 3
- Ø 4 mm² / 300 mm
- MC4
Warranty
- 15 years
- 30 years
- 15 years; 90 %30 years; 87 %
HIGHER LIFETIME POWER YIELD
- 1 %
ELECTRICAL DATA AT STC
Standard Test Conditions
Irradiance 1000W/m2, Cell Temperature 25˚C & AM1.5
- 480 Wp
- 36.2 V
- 13.26 A
- 43.27 V
- 14.19 A
- 22.2 %
- 0/+5 W
ELECTRICAL DATA AT NOCT
Nominal Operating Cell Temperature:
Irradiance 800W/m2, Ambient Temperature 20˚C & Wind Speed 1m/s
- 361 W
- 33.36 V
- 10.82 A
- 41.17 V
- 11.44 A
TEMPERATURE COEFFICIENTS
- 45 ± 2˚C
- -0.29 %/˚C
- -0.25 %/˚C
- -0.045 %/˚C
MAXIMUM RATING
- IEC 1500 V
- 25 A
- -40 ˚C ~ +85 ˚C
- 5400 Pa
KEY INFORMATION
- LUXEN SOLAR
- CHINA
- MANUFACTURER
- 2005
- 501-1000 people
- 395 Watts to 670 Watts
Production
- >10 Units
- 100 MegaWatts
